| Product Name: | 2200C 15KW High Frequency Small Induction Melting Furnace | Voltage: | 220/380V |
|---|---|---|---|
| Power: | 26kw | Melting Speed: | 3-5minutes |
| Cooling: | Water | Max Temperature: | 2500 Degree |
| Melting Metal: | Gold,silver,copper | OEM: | Accepted |
| MOQ: | 1SET | ||
| High Light: | 2200C Small Induction Melting Furnace,15KW Small Induction Melting Furnace,380V high frequency heating machine |
||

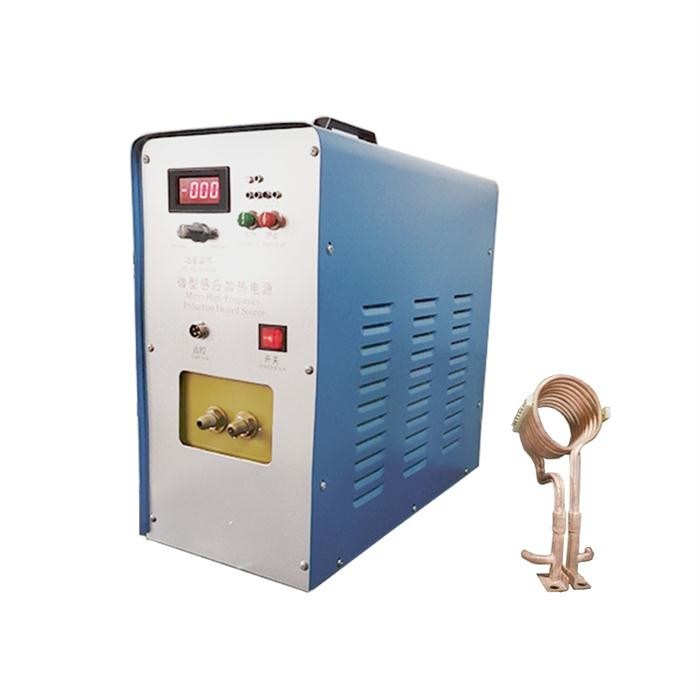

2200C 15KW High Frequency Small Induction Melting furnace
Introduction of high-frequency Induction Heater Furnace
1. Different shape and size of induction coil can be changed easily to heat different parts.
2. The power and the operating time of the heating period and retain period can be preset respectively
3. The separated models are designed to fit the dirty surrounding of some cases.
2.Technical Parameters of high-frequency Induction Heater Furnace
| Model | IR-26 |
| Input power desire | Single phase 220V 50HZ |
| Oscillate power max | 26KW |
| Max input current | 37A |
| Oscillate frequency | 30-100KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min ≤40°C |
| Duty cycle | 80% |
| Dimensions(L*W*H) | 500*380*520mm |
| Net weight | 30kg |
| Cable length | 2-6(Meters) |
