Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

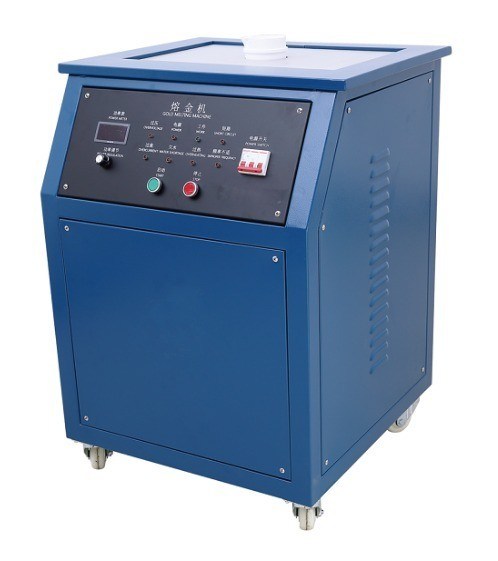

Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace

Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace
Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace

Large Image :  Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-B1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1,699-USD2,699/set
Packaging Details: Standard export wooden box package
Delivery Time: 5-8 working days
Payment Terms: T/T、Credit card
Supply Ability: 10 Set/Week
Detailed Product Description
Product Name: IGBT Platinum Melting Furnace 2kg Voltage: 3 Phase 380V ± 10%, 50 / 60HZ
Power: 15 Kw ( Adjustable) Applicable Metal: Platinum, Palladium, Gold, K Gold, Silver, Copper
Melting Time: 2 Minutes Maximum Capacity: 1 Kg (Platinum)
Water Pump: Built-in Cooling Method: Water Cooling
High Light:

Lightweight Platinum Melting Furnace

,

IGBT Platinum Melting Furnace

,

15 Kw Platinum Melting Furnace

Jewelry Melting Furnace IGBT Platinum Melting Furnace 2kg



Feature:

1. Use the IGBT module and Inverting technologies of third generation, at least 20% energy comparing with KGPS thyristor type induction system,and more reliability, lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Display of heating power and heating current and oscillating frequency.
4. Convenient to change furnace crucible for different material melting.
5. Small size, light weight, and convenient to move.And install easily

Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace 0



The parameter of the Jewelry Melting Furnace IGBT Platinum Melting Furnace 2kg:



Model IRIS-B1 IRIS-B2
Power supply 3 phase 380V ± 10%, 50 / 60HZ 3 phase 380V ± 10%, 50 / 60HZ
Power 15 kw( adjustable) 15 kw( adjustable)
Applicable metal Platinum, Palladium, Gold, K Gold, Silver, Copper Platinum, Palladium, Gold, K Gold, Silver, Copper
Melting time 2 minutes / furnace 2 minutes / furnace
Maximum capacity 1 kg (Platinum) 2 kg (Platinum)
Temperature 2800℃ 2800℃
Machine size 1180x690x500 mm 1180 * 680x500 mm
Machine weight 88 kg 90 kg
Heating technology IGBT induction heating IGBT induction heating
Water pump Built-in Built-in
Cooling method Water cooling Water cooling



Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace 1

Lightweight Small 15 Kw 2kg IGBT Platinum Melting Furnace 2

FQA:



1. How long is the delivery time?
The products wil be sent within 7days after the full payment.



2. What is the warranty time?
One year.



3. What are the accessories for the machine?
We will send you two induction coils for free.



4. How to install your machine?
we have installation instruction papers and videos, we will teach till you can do it yourself.



5. I still have the question , and i don't understand ...?
Please send us the inquiry , 24 hours service for you.



Tips:

1. Details of prices,pls on-line or email consulation.

2. Picture for reference only,tiny chromatic,pls take material object as the standard.

3. Welcome to illustrate your workpiece parameters,we will try our best to specifically customized for you.

Thanks for your reading ! Welcome to contact us !
