Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment

Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment
Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment

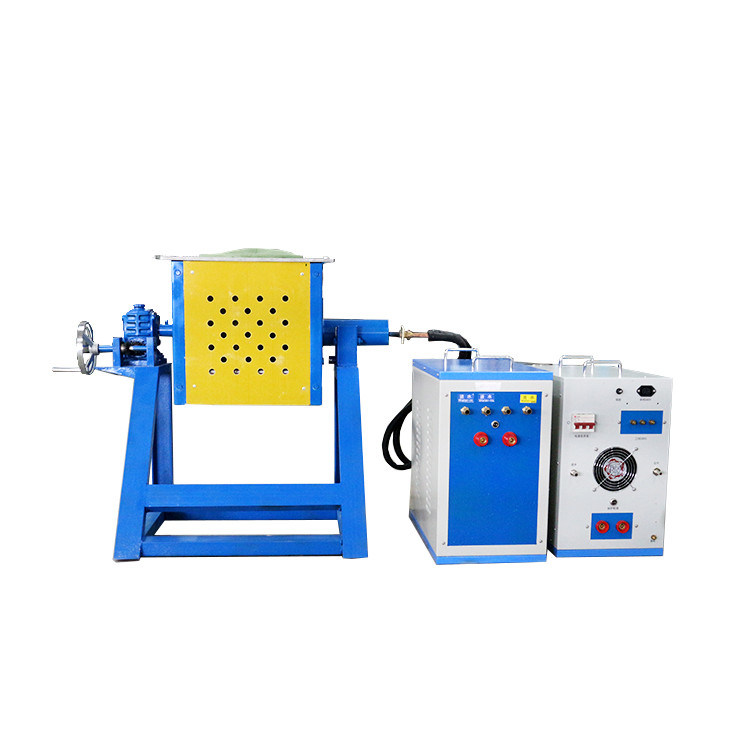

Large Image :  Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-HF110
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3599-USD5599/Set
Packaging Details: Wooden box
Delivery Time: Within 7 days
Payment Terms: T/T,Credit card
Supply Ability: 30 sets/week
Detailed Product Description
Product Name: Copper Smelting Equipment Induction Melting Cast Steel Melting Furnace Melting Material: Aluminum
Capacity: 50kg Condition: New
Maximum Input Power: 110KW Output Voltage:: 70-520V
Input Current:: 30-200A Input Voltage:: 3-phase 380V, 50/60HZ
High Light:

Cast Steel Melting Induction Furnace

,

Steel Melting Induction Furnace 50kg

,

50kg Copper Smelting Equipment

Copper Smelting Equipment Induction Melting Cast Steel Melting Furnace



Structure :

  • The melting furnace set includes medium frequency generator, compensating capacitor melting furnace, melting furnace body.
  • According to the method of tilting, tilting furnace is divided into three kinds: manual tilting furnace, electrical tilting furnace hydraulic tilting furnace.
  • Mainly used for the melting of steel, stainless steel, copper, brass, silver, gold, aluminium materials, etc. Melting capacity can be from 3KG to 200KG.

Main models melting abilities:



Model Aluminum Copper Stainless
MF-15KW 3kg 10kg 3kg
MF-25KW 5kg 20kg 5kg
MF-35KW 10kg 30kg 10kg
MF-45KW 18kg 50kg 18kg
MF-70KW 25kg 100kg 25kg
MF-90KW 40kg 120kg 40kg
MF-110KW 50kg 150kg 50kg
MF-160KW 100kg 250kg 100kg

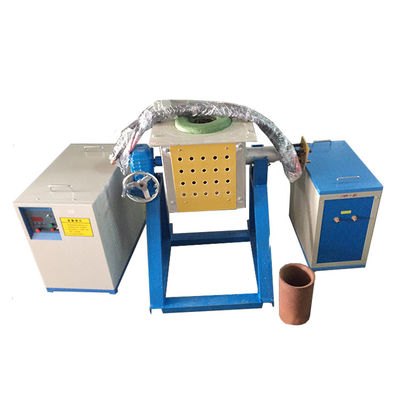

Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment 0



Main features of Copper Smelting Equipment Induction Melting Cast Steel Melting Furnace


1. M.F. melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
4. Power efficiency is 20% higher than the SCR medium frequency machines;
5. Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.

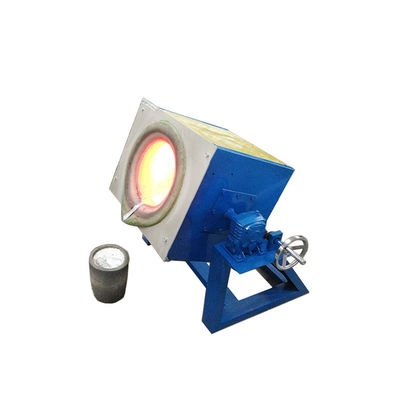

Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment 1



Packaging&Delivery



  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.

Aluminum Cast Steel Melting Induction Furnace 50kg Copper Smelting Equipment 2
