| Product Name: | Stainless Steel Melting Furnace | Usage: | Smelting Steel Iron Copper Other Metal |
|---|---|---|---|
| Power: | 110kw | Voltage: | 380v |
| Cooling Water: | 10-15L/min | Current: | 170A |
| Visit Company: | Welcome | Melting Time: | 40mins |
| Capacity: | 50-200kg | Color: | Blue Yellow |
| High Light: | Medium Frequency Metal Smelting Furnace,110kw Metal Smelting Furnace,200kg Stainless Steel Melting Furnace |
||

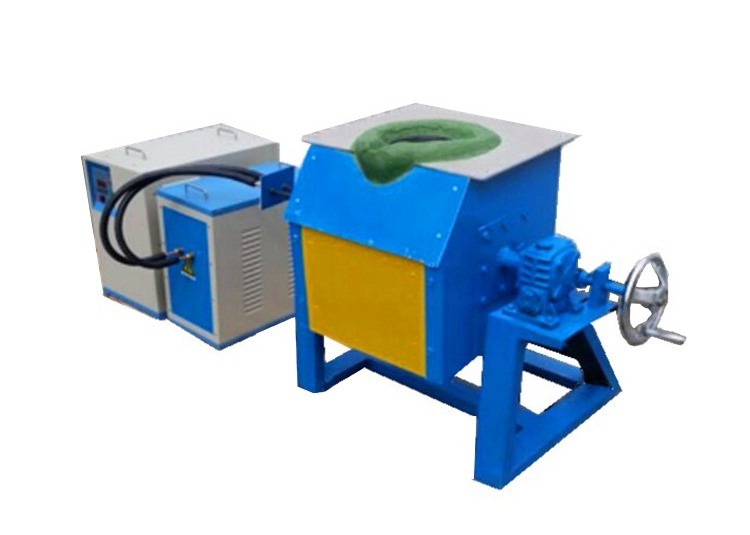

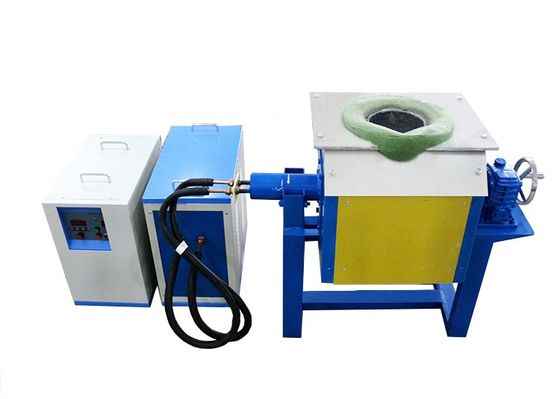

110kw medium frequency smelting furnace 50kg -200kg stainless steel melting furnace feature
110kw medium frequency smelting furnace 50kg -200kg stainless steel melting furnace heating principle
The flow of medium-frequency and high-frequency machine is made of circular or other shape of the heating coil (usually with copper production). A coil which produces changes in the magnetic polarity of the instantaneous beam, the metal object is heated coil placed on the magnetic beam will be heated through the whole object, the object being heated inside the heating current in the opposite direction, there will corresponding large eddy currents. Because of the heated object memory in the resistance, it will have a lot of Joule heat, so that the rapid rise in body temperature itself. Metallic material is heated to achieve for all purposes.
110kw medium frequency smelting furnace 50kg -200kg stainless steel melting furnace technical parameter
| Output power | 110KW | Dimension(mm) | 560*460*475mm |
| Oscillation frequency | 30~200KHz | Gross Weight | 450Kg |
| Voltage range | 70V~550V | Cooling water pressure | 0.1~0.3MPa |
| Input current | 170A | Cooling water temperature | < 50°C |
| Efficiency | 95% | Duty cycle | 100%24-hour continuous operation |
| Application | Melting gold, silver, copper, iron, steel, stainless steel, platinum and any metal items | ||
110kw medium frequency smelting furnace 50kg -200kg stainless steel melting furnace packaging & delivery
1. All the goods will be test and packed well before shipping to avoid damage during delivery.
2. Plastic inside,Polyfoam filled,Carton Outside.
3. Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.
