Product Details:
Payment & Shipping Terms:
|
| Product Name: | Induction Melting Machine | Model: | 110kw |
|---|---|---|---|
| Voltage:: | 380v | Output Current:: | 30-200A |
| Oscillation:: | 1-20HZ | Melting Material: | Steel |
| Capacity:: | 50kg | Melting Time: | 50 Mins |
| Melting Temperature: | 1600 ℃ | Heating Method:: | Induction Method |
| High Light: | 50kg Metal Smelting Furnace 1KHZ,1600 Degree Metal Smelting Furnace,20KHZ Portable Gold Smelter |
||

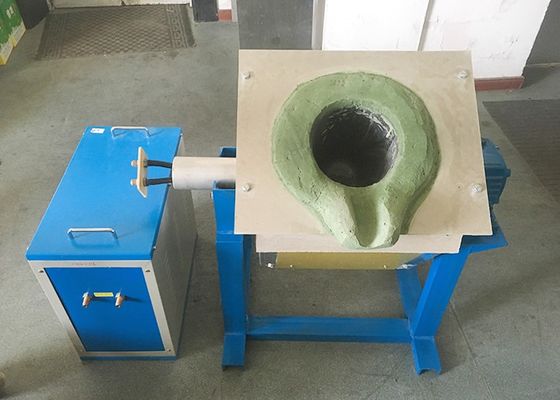

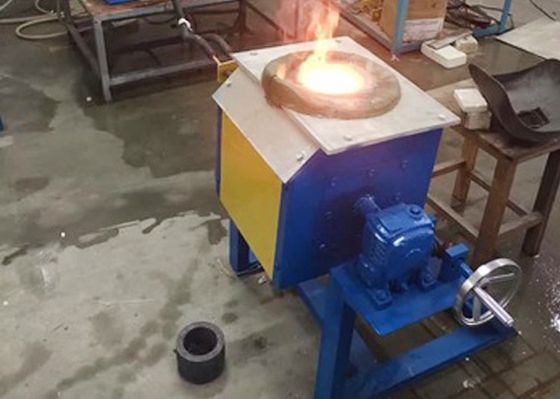

50kg Small Smelting Furnace For Steel Melting Medium Frequency Furnace Portable Induction Heating Machine
50kg Small Smelting Furnace For Steel Melting Medium Frequency Furnace Portable Induction Heating Machine technical parameter:
Maximum input power: 110KW
Oscillation frequency: 1-20KHZ
Maximum input current: 170A
Output voltage: 50-520V
Input voltage: three-phase 380V, 50 or 60HZ
Cooling water requirements: ≥ 0.2Mpa, ≥ 5L/min
Load duration: 100%
Melting time: 45 mins
Melting temperature: 1600℃
Melting capacity: 50kg
| Output power | 110KW | Dimension(mm) | 460*360*365mm |
| Oscillation frequency | 1~20KHz | Gross Weight | 290Kg |
| Voltage range | 360V~420V | Cooling water pressure | 0.1~0.3MPa |
| Input current | 170A | Cooling water temperature | < 50°C |
| Efficiency | 95% | Duty cycle | 100% |
| Application | Melting gold, silver, copper, iron, steel, stainless steel, platinum and any metal items | ||
Main models of the Medium Frequency Furnace Portable Induction Heating Machine:
| Model | Aluminum | Copper | Stainless |
| MF-15KW | 3kg | 10kg | 3kg |
| MF-25KW | 5kg | 20kg | 5kg |
| MF-35KW | 10kg | 30kg | 10kg |
| MF-45KW | 18kg | 50kg | 18kg |
| MF-70KW | 25kg | 100kg | 25kg |
| MF-90KW | 40kg | 120kg | 40kg |
| MF-110KW | 50kg | 150kg | 50kg |
| MF-160KW | 100kg | 250kg | 100kg |

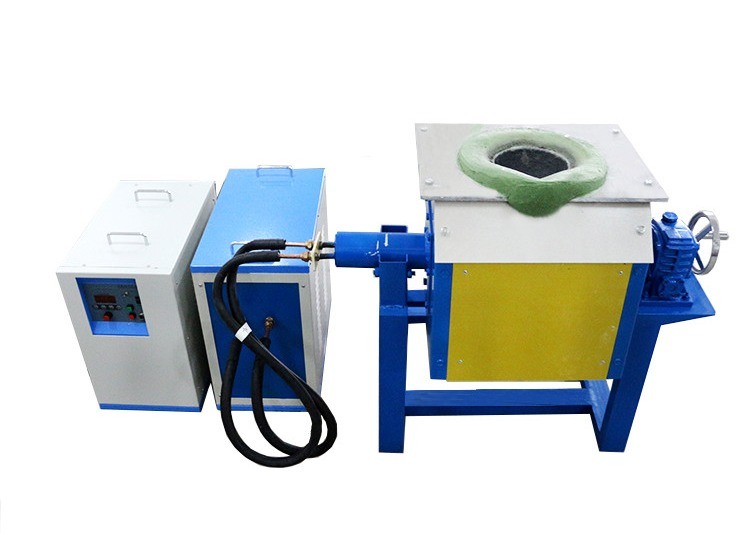

Smelting metals such as Gold,Sliver, Copper, Bronze, Brass, Steel,Aluminum etc.Small capacity smelt of them , the best chooise is the Medium Frequency Furnace Induction Melting Machine.Small medium frequency melting furnace includes power supply cabinet, capacitor cabinet and melting furnace body.
50kg Small Smelting Furnace For Steel Melting Medium Frequency Furnace Portable Induction Heating Machine include:
Our Service
Before service
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.
In-sale service
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service
1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
4. technician to provide visiting service after checking with the customer and charge for a favorable price.
5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
