220V 380V Metal Gold Electric Crucible Melting Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

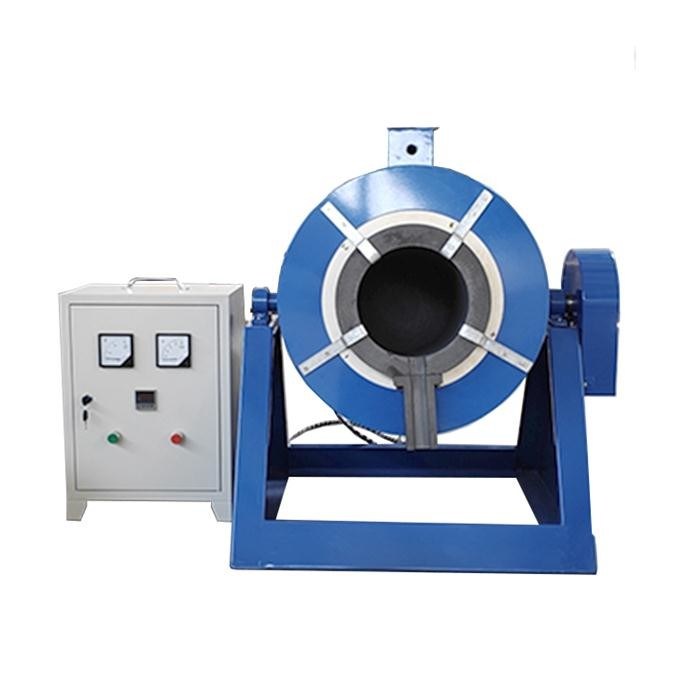

220V 380V Metal Gold Electric Crucible Melting Furnace

220V 380V Metal Gold Electric Crucible Melting Furnace
220V 380V Metal Gold Electric Crucible Melting Furnace

Large Image :  220V 380V Metal Gold Electric Crucible Melting Furnace

Product Details:
Place of Origin: Henan,China
Brand Name: IRIS
Certification: CE
Model Number: IS-02
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 1000-1800/SET
Packaging Details: Wooden case
Delivery Time: 8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500SET per month
Detailed Product Description
Name: Electric Crucible Melting Furnace Size: 910*810*1100mm
Color: Blue Melting Metal: Alumnium
Max Temperature: 950 Degree Voltage: 220/380V
Melting Time: 30-40 Minutes OEM: Accepted
Highlight:

220V Electric Crucible Melting Furnace

,

Gold Electric Crucible Melting Furnace

,

950 Degree Electric Crucible Furnace

5kg 10kg Electric Crucible Metal Gold Melting Furnace



1Introduction



1. Power Condition: 220/380V. The voltage needs to keep stable or a voltage stabilizer is needed to to keep long life cycle.

2. Cooling Water Supply: The cold water shouldn’t stop any time, temperature needs to be cool, water needs to be clean.

3. Cooling Tower: It is better to assemble with a cooling tower if the furnace is continuous working, if not, a cooling tank is applicable.

4. Crucible Reliability: The crucible is normally to be replaced every 60 loads.



2Technical Parameters

Item Decsription
Furnace Voltage 220V Single phase
Furnace Power 6KW
Chamber Size Dia285*420mm
Working Temperatrue 900 Degrees C(1652F)
Max Temperature 1000 Degrees C(1832F)
Furnace Size 91*81*110cm
Melting Capacity 10-20kg for aluminum melting
Melting Material Gold copper silver aluminum lead zinc etc
Heating Rate About 30-40 minutes
Furnace Package Wooden box package(150kg,91*81*110cm)
Delivery Time Within 10 days after getting payment
Payment Method T/T,PayPal,Western Union and Alibaba TradeAssurance Order
Shipment Shipping by air or by sea or by fast express transport,such as FedEx,UPS,DHL,TNT,EMS etc
Export Experience 5 years
Others Can be custom



220V 380V Metal Gold Electric Crucible Melting Furnace 0

We Guarantee:

All the products have been tested before ship out.
All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.
If there is no man-made problems,we will replace or repair for you freely.
