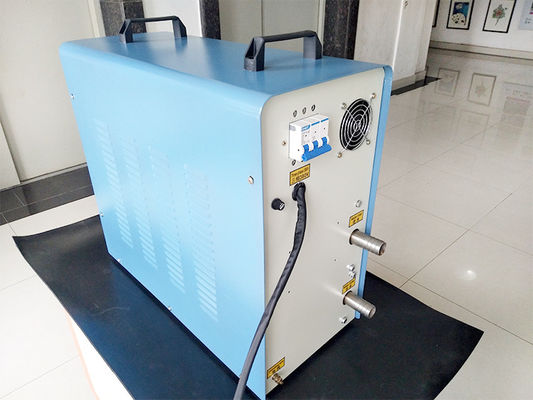

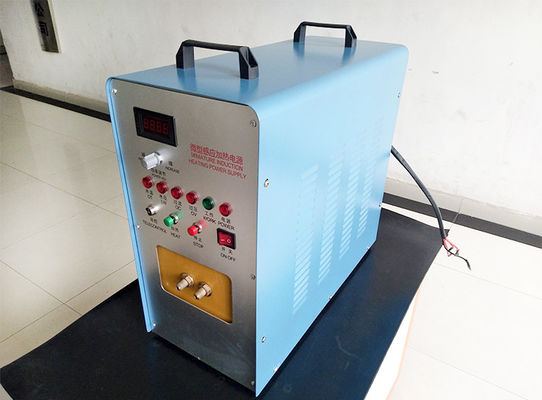

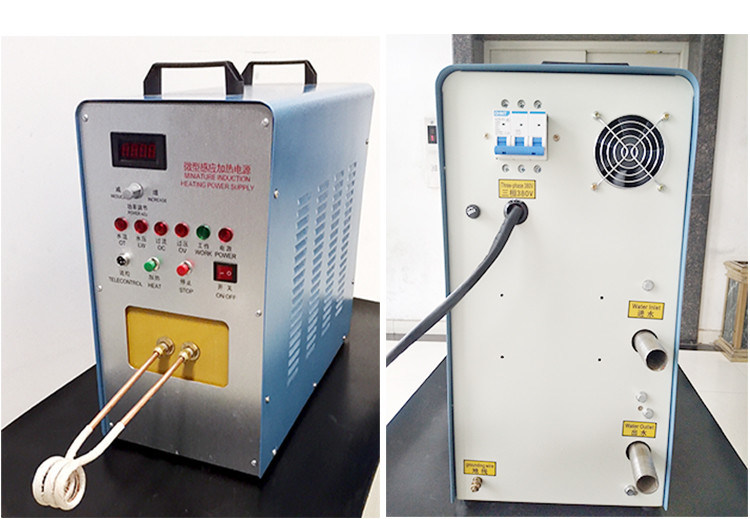

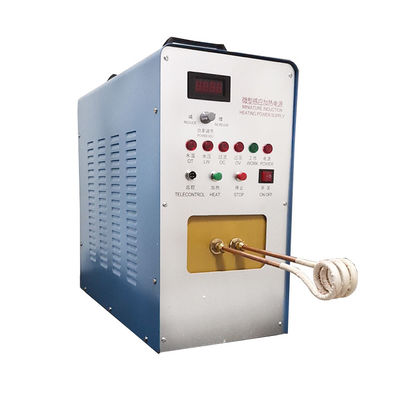

High Frequency Induction Heating Furnace 50kw Small Steel Forging Furnace

Induction Heater Machine Steel Bar Induction Heating Furnace

Characteristics of high frequency induction heating machine:

1. Fast heating: the fastest heating speed is less than one second.The heating is very uniform
2. Wide heating: various kinds of metal workpieces can be heated (disassembled induction coil according to the shape of the workpiece)
3. Convenient installation: connect power, induction coil and incoming water pipe can be used;Easy to operate: a few minutes to learn
4. Power adjustable: no extreme regulating output power.
5. Protection: it is equipped with overpressure, overflow, overheat, water shortage and other alarm instructions, and automatic control and protection.

Technical Parameter:

The scope of use of the High Frequency Induction Heating Furnace:

Diathermy :

• Reinforcing steel * steel plate * steel wire * steel belt and other online heat transfer operations.
• Round steel, hexagonal steel, drill rod, steel pipe, etc.
• Bolt * nut * flat steel and other heating red.

Quenching :

• Gear*axis and other surface scanning quenching.
• Line wheel* sprocket* and other disc surface quenching.
• Machine tool guide * Dovetail groove and other surface heat treatment.
• Steel pipe * concrete pump tube inner wall surface quenching, etc.

​

Equipment composition:

• There are three main components: 1. Heating power supply host 2. Water-cooled dry-type transformer 3. Customized contour sensor
• Note: The model of the heating power supply host is divided into: 50KW*80KW*120KW*160KW*200KW*300KW*500KW, etc.
• The composition of the transformer: consists of a high-temperature sintered magnetic core or a silicon steel sheet, and the number of turns is adjustable.
• Custom profiling sensor: Customized processing using round copper tube or square copper tube. The specific size is customized by the user to provide the workpiece size or reserved clearance.

​

Our service

Pre-sale service:

1. recommend the most suitable machine for customers, according to their requirements.

2. Inquiry and consulting support.

3. Sample testing support.

4. View our Factory.

In-sale service:

1. Strictly manufacture the machine, according to relevant technical standards.

2. Take run test, according to relevant equipment test run regulations.

3. Strictly check up the machine, before delivery

4. Delivery on time.

After-sale service:

1. 12 months warranty period

2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we  provide replacement parts after detecting the faults.

3. We will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.

Please  note:The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
