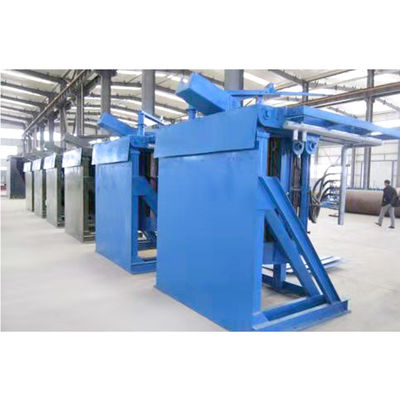

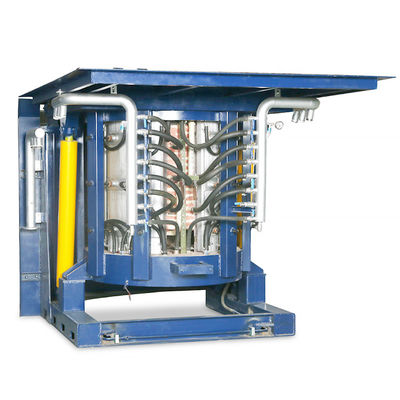

ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace

ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace
ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace

Large Image :  ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-G1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD13,700-USD19,999/Sset
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 Wokring days
Payment Terms: T/T
Supply Ability: 5 Set/month
Detailed Product Description
Product Name: 1T Large Induction Melting Machine Capacity: 1T
Power: 1000kw Input Voltage: 6Φ 750V 50HZ/ 60HZ
Electric Power Consumption: 590 Water Circulation: 20t/h
Matching Transformer’s Capacity: 1250KVA DC Current: 1410A
High Light:

1 Ton Metal Industrial Melting Furnace

,

IRIS G1 Industrial Metal Melting Furnace

,

ISO Copper Cast Iron Furnace

1T Large Induction Melting Machine For Melting Metals Copper Cast Iron Brass



The equipment is used in metallurgical industry, casting industry, non-metal smelting and other industries:
Mainly used in the smelting of cast iron, stainless steel, alloy steel and non-ferrous metals, including heavy metals (such as copper and lead) and precious metals (such as gold and silver).



ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace 0



Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection

Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace



Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500

Rated power

300KW 500KW 1200KW 1400KW 2000KW 4500KW

Rated capacity

350kg 750kg 1500kg 2000kg 3000kg 6000kg

Matching transformer’s capacity

315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA

Input voltage

380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ

MF frequency

1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ

MF voltage

750V 750V 1400V 1480V 1460V 4800V

DC voltage

500V 500V 990V 990V 990V 1350V

DC current

600A 1000A 1000A 1410A 1010A 3300A

Maximum temperature

1800℃

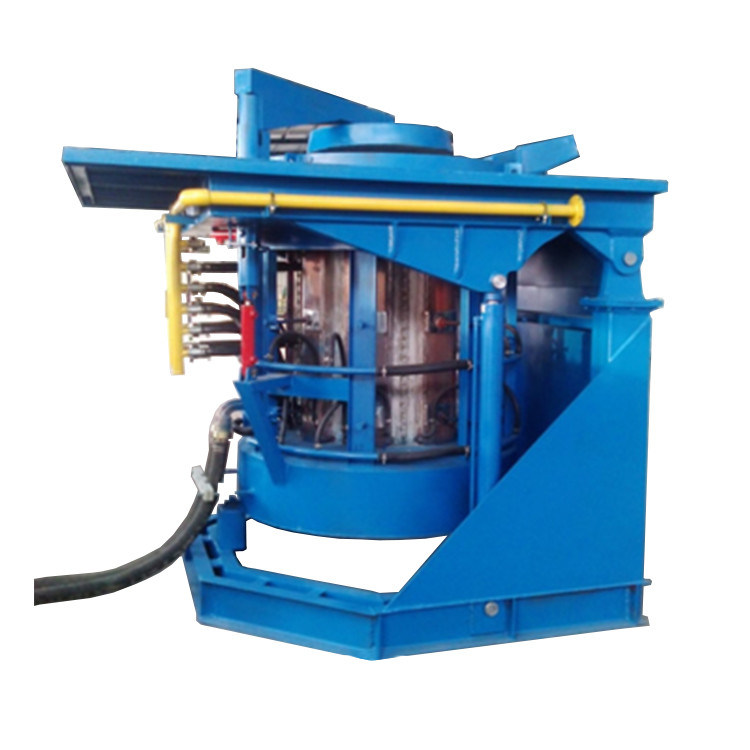

ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace 1

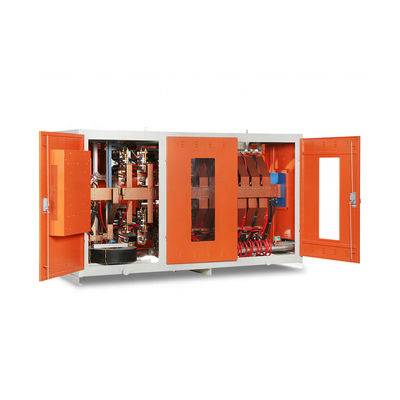

ISO 1 Ton Metal Industrial Melting Furnace Copper Cast Iron Furnace 2
