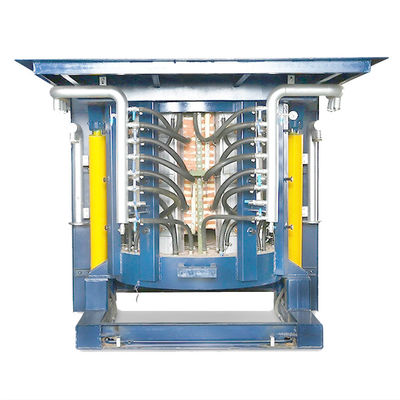

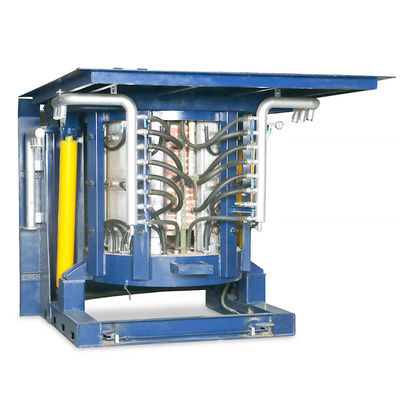

Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace

Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace
Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace

Large Image :  Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-G2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD13,700-USD19,999/Sset
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 Wokring days
Payment Terms: T/T
Supply Ability: 5 Set/month
Detailed Product Description
Product Name: Stainless Steel Melting Furnace Capacity: 1T
Power: 1000kw Electric Power Consumption: 590
Water Circulation: 20t/h Matching Transformer’s Capacity: 630KVA
Input Voltage: 6Φ 750V 50HZ/ 60HZ DC Current: 600A
High Light:

Energy Saving IGBT Induction Furnace

,

1 Ton IGBT Induction Furnace

,

Stainless Steel IGBT Induction Furnace

Energy Saving IGBT Induction Furnace 1 ton Stainless Steel Fast Melting

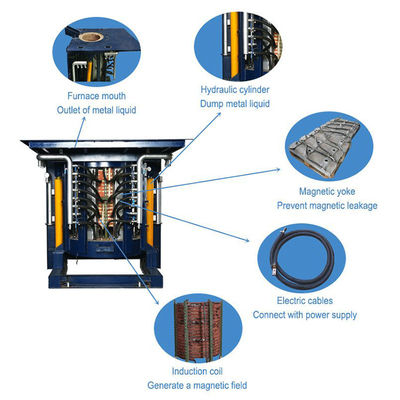

Induction melting furnace features:



The open type furnace body includes: Whirlwind dust removal environmental protection furnace lid and tilting furnace oil cylinder, furnace lid lifting, new induction coil, energy saving yoke, full set of water inlet distributor, imported carbonless hose and so on.

High-insulation induction coil design, coil material is made of high-standard Chinalco luoyang copper, high strength and longer service life.

The furnace body is welded by a rectangular seamless steel structure. The whole structure is simple and sturdy. The furnace platform is knotted with refractory material to protect the steel plate from deformation.



Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace 0



Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection

Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace



Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500

Rated power

300KW 500KW 1200KW 1400KW 2000KW 4500KW

Rated capacity

350kg 750kg 1500kg 2000kg 3000kg 6000kg

Matching transformer’s capacity

315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA

Input voltage

380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ

MF frequency

1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ

MF voltage

750V 750V 1400V 1480V 1460V 4800V

DC voltage

500V 500V 990V 990V 990V 1350V

DC current

600A 1000A 1000A 1410A 1010A 3300A

Maximum temperature

1800℃



Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace 1

Energy Saving 1 Ton Stainless Steel IGBT Induction Furnace 2
