Henan IRIS Electromechanical Equipment  Co., Ltd.
Home ProductsIndustrial Melting Furnace

High Voltage Protection Industrial Metal Melting Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

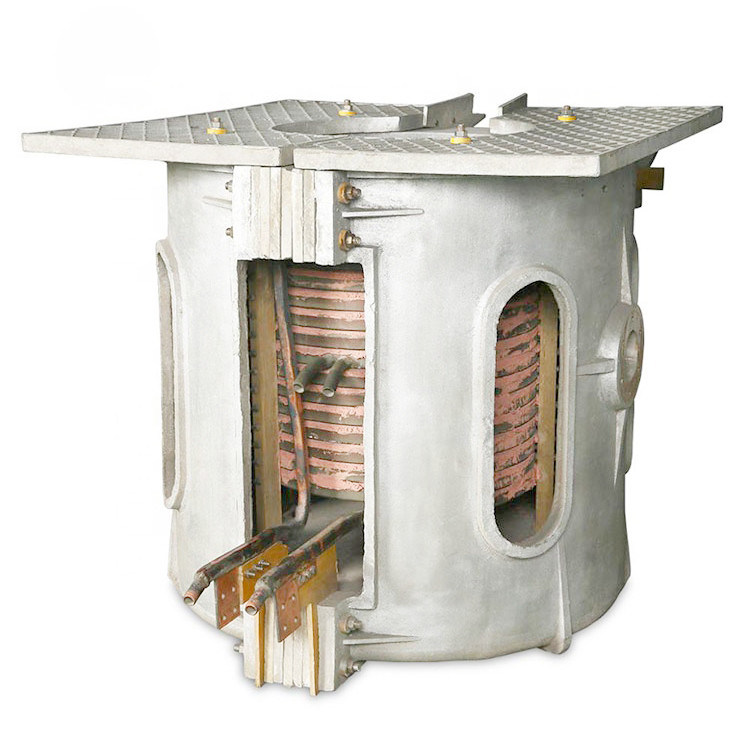

High Voltage Protection Industrial Metal Melting Furnace

High Voltage Protection Industrial Metal Melting Furnace
High Voltage Protection Industrial Metal Melting Furnace High Voltage Protection Industrial Metal Melting Furnace High Voltage Protection Industrial Metal Melting Furnace

Large Image :  High Voltage Protection Industrial Metal Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-A2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD4,659-USD6,959/Sset
Packaging Details: Standard export wooden box package
Delivery Time: 5-8 Wokring days
Payment Terms: T/T
Supply Ability: 5 Set/month
Detailed Product Description
Product Name: High Voltage Protection Industrial Induction Melting Furnace Capacity: 500kg
Power: 400kw Input Voltage: 3Φ 380V 50HZ
Electric Power Consumption: 560 Water Circulation: 10t/h
Maximum Temperature: 1800℃ MF Frequency: 1000HZ
High Light:

400kw Industrial Metal Melting Furnace

,

1000HZ Industrial Metal Melting Furnace

,

500kg Industrial Metal Melting Furnace

High Voltage Protection Industrial Induction Melting Furnace Copper Aluminum Smelter



Induction melting furnace features:


Induction melting furnace has fast melt speed.Can melt Waste iron,steel,aluminum cans ,lead,etc all kinds of metals.Steel and Aluminum structure furnace body design.Work stable.And the machine have multiple protection.With Good magnetic isolation,safe and reliable. It is most used in foundry factory,rolling mill etc to use the waste metal material recycling to produce ingots.if you have any need about the furnace, you can contact us to get more dtails.Induction melting furnace are customized under customer's workshop size.and working environment ,customer's special requirement.



High Voltage Protection Industrial Metal Melting Furnace 0



Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection

Technical parameter of the High Voltage Protection Industrial Induction Melting Furnace Copper Aluminum Smelter



Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500

Rated power

300KW 500KW 1200KW 1400KW 2000KW 4500KW

Rated capacity

350kg 750kg 1500kg 2000kg 3000kg 6000kg

Matching transformer’s capacity

315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA

Input voltage

380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ

MF frequency

1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ

MF voltage

750V 750V 1400V 1480V 1460V 4800V

DC voltage

500V 500V 990V 990V 990V 1350V

DC current

600A 1000A 1000A 1410A 1010A 3300A

Maximum temperature

1800℃

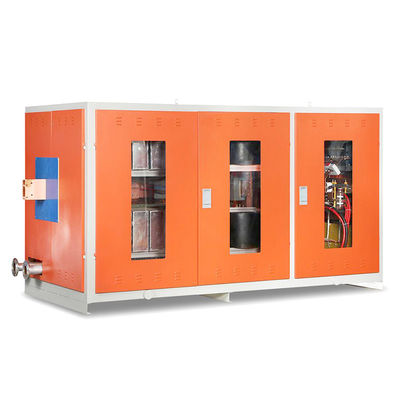

High Voltage Protection Industrial Metal Melting Furnace 1

High Voltage Protection Industrial Metal Melting Furnace 2
