Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting

Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting
Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting

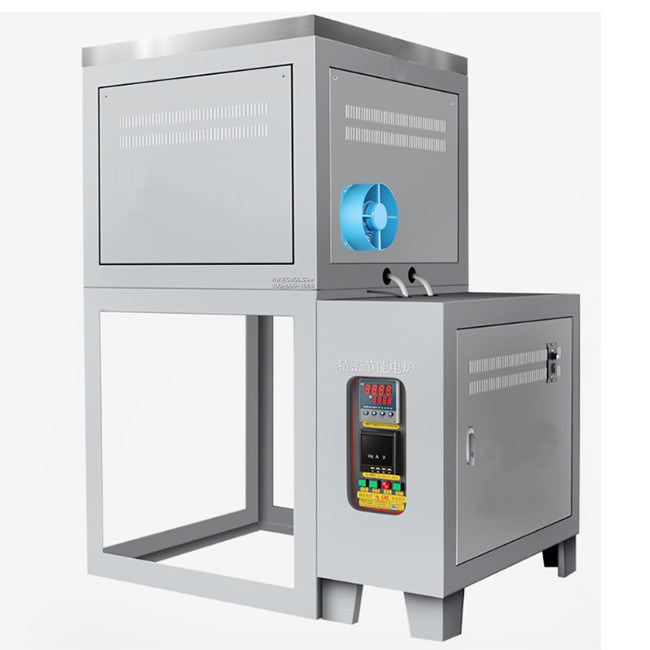

Large Image :  Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IR-12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2200-USD2800/set
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 woorking days
Payment Terms: T/T,Credit card
Supply Ability: 10 Sets/weeks
Detailed Product Description
Product Name: Electric Glass Melting Furnace Working Temperature:: 1200℃
Maximum Temperature:: 1250℃ Temperature Control Accuracy:: ±1℃
Furnace Temperature Uniformity:: ±1℃ Crucible Volume:: 1.6L
Heating Element:: Silicon Carbide Rod Crucible Material:: High-purity Zirconium Quartz (99.9%)
Heating Rate:: Can Be Adjusted (30℃/min | 1℃/h) Cooling Structure:: Double-layer Furnace Shell, Air-cooled
High Light:

1.6L Electric Metal Furnace

,

1200 Degree Electric Metal Furnace

,

1200C Furnace For Glass Melting

Electric Metal Melting Furnace Glass Melting Furnace Temperature 1200℃



It is designed for the development of ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new materials, special materials, building materials, metals, non-metals a3.6kw Gold Electric Smelternd other chemicals and materials for the laboratories of universities, scientific research institutes and industrial and mining enterprises. Special equipment developed for sintering, melting, analysis and production of materials. It can also be used as production equipment for small enterprises.



Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting 0

Feature

  • Temperature control accuracy: ±1℃; constant temperature accuracy: ±1℃ (depending on the size of the furnace)
  • Simple operation, programmable, PID automatic setting, automatic heating, automatic heat preservation, automatic cooling;
  • High heating rate. The heating rate can be adjusted from 1℃/h to 30℃/min);
  • Energy saving (imported materials are used in the furnace, which has high thermal stability and resistance to extreme cold and extreme heat)
  • Double loop protection. (Over temperature protection, over voltage protection, over current protection, thermocouple protection, power supply protection, etc.)
  • The furnace body is sprayed at high temperature, which has good wear resistance and corrosion resistance, and the surface temperature of the furnace body is closer to room temperature.

Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting 1

Parameter of the melting furnace:



Model IR-12 IR-14 IR-16 IR-18
working temperature: 1200℃ 1400℃ 1600℃ 1800℃
Temperature control accuracy: ±1℃
Furnace temperature uniformity: ±1℃
Heating rate: can be adjusted (30℃/min | 1℃/h)
Crucible volume: 1.6L/3L/5L
Heating element: silicon carbide rod silicon molybdenum rod
Crucible placement method: Top placement and post
Feed in and out: Top loading and bottom loading
Crucible material: high-purity zirconium quartz (99.9%)
Cooling structure: double-layer furnace shell, air-cooled
Standard accessories: heating element, manual, crucible tongs, high temperature gloves



More details:



1. The operation panel can be pressed continuously for 60 million times for longer use
2. Intelligent heat dissipation, keep the furnace constant temperature
3. A mixer can be added to the top of the machine, which is convenient and practical
4. The machine adopts screw lifting, more accurate and safer
5. Surrounded by vents to reduce the temperature of the furnace body and make the furnace long-lasting insulation

Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting 2

Temperature 1200 Degree 1.6L Electric Metal Furnace For Glass Melting 3
