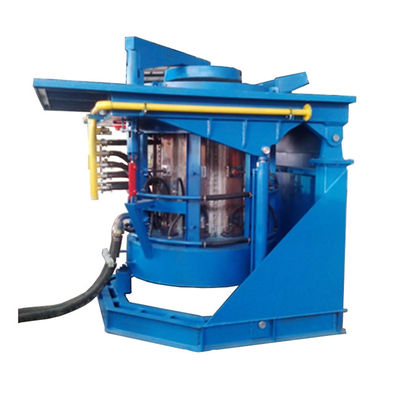

0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace

0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace
0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace 0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace

Large Image :  0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-G5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD9969-USD16,969/Sset
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 Wokring days
Payment Terms: T/T
Supply Ability: 5 Set/month
Detailed Product Description
Product Name: 300kw IGBT Scrap Iron Steel Melting Furnace Capacity: 0.5t
Power: 300kw Input Voltage: 6Φ 750V 50HZ/ 60HZ
Electric Power Consumption: 640 MF Frequency: 1000HZ
DC Current: 600A Maximum Temperature: 1800℃
High Light:

IGBT Industrial Metal Melting Furnace

,

300kw Industrial Metal Melting Furnace

,

0.5T Industrial Metal Melting Furnace

300kw IGBT Scrap Iron Steel Melting Furnace Steel Shell Smelter



Medium Frequency Induction Furnace is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting.



0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace 0



Technical parameter of Large Industrial Metal Melting Furnace Induction Equipment Hydraulic Pressure



Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500
Rated power 300KW 500KW 1200KW 1400KW 2000KW 4500KW
Rated capacity 350kg 750kg 1500kg 2000kg 3000kg 6000kg
Matching transformer’s capacity 315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA
Input voltage 380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ
MF frequency 1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ
MF voltage 750V 750V 1400V 1480V 1460V 4800V
DC voltage 500V 500V 990V 990V 990V 1350V
DC current 600A 1000A 1000A 1410A 1010A 3300A
Maximum temperature 1800℃



Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection

0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace 1

0.5T 300kw IGBT Scrap Industrial Metal Melting Furnace 2
