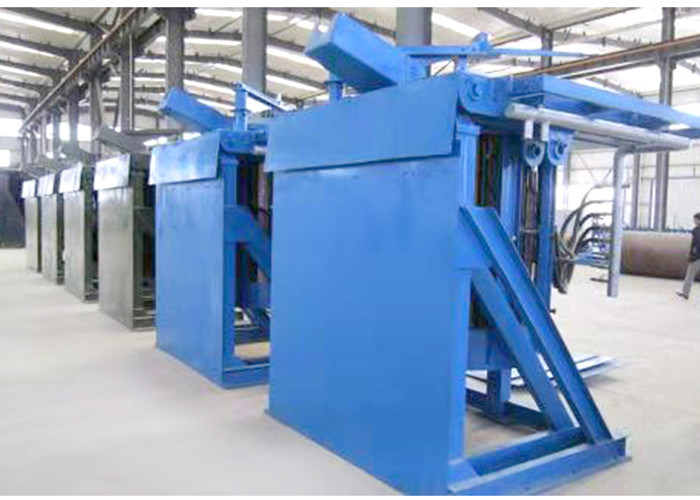

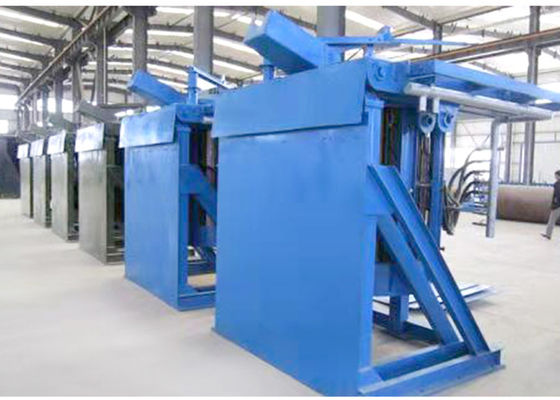

1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace

1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace
1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace 1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace

Large Image :  1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-G4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD13,700-USD19,999/Sset
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 Wokring days
Payment Terms: T/T
Supply Ability: 5 Set/month
Detailed Product Description
Product Name: Scrap Metal Melting Furnace Capacity: 1T
Power: 400kw Input Voltage: 6Φ 750V 50HZ/ 60HZ
Electric Power Consumption: 640 Water Circulation: 20t/h
Transformer Capacity: 400KVA Max Current: 900A
High Light:

400kw Metal Melting Furnace

,

1T Metal Melting Furnace

,

1T Aluminum Casting Furnace

Competitive Metal Melting Furnace Ferrous And Non-Ferrous Metal Melting



Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper, zinc, tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.


Performance Characteristics:


1. Zero-voltage scanning soft, available for start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;

5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;

6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; Power supply with fault diagnosis facilitating service.



1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace 0



Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection

Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace



Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500

Rated power

300KW 500KW 1200KW 1400KW 2000KW 4500KW

Rated capacity

350kg 750kg 1500kg 2000kg 3000kg 6000kg

Matching transformer’s capacity

315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA

Input voltage

380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ

MF frequency

1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ

MF voltage

750V 750V 1400V 1480V 1460V 4800V

DC voltage

500V 500V 990V 990V 990V 1350V

DC current

600A 1000A 1000A 1410A 1010A 3300A

Maximum temperature

1800℃



1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace 1

1 Ton 400kw Ferrous / Non Ferrous Metal Melting Furnace 2
