High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace

High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace
High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace

Large Image :  High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-G4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD13,700-USD19,999/Sset
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 Wokring days
Payment Terms: T/T
Supply Ability: 5 Set/month
Detailed Product Description
Product Name: Scrap Metal Melting Furnace Capacity: 2T
Power: 2000kw Input Voltage: 6Φ 750V 50HZ/ 60HZ
Electric Power Consumption: 530 Water Circulation: 80t/h
Maximum Temperature: 1800℃ Melting Time: 40 Minutes
High Light:

2000 Kw Scrap Metal Melting Furnace

,

2 Ton Scrap Metal Melting Furnace

,

1800 Degree Metal Melting Furnace

High Efficiency Scrap Metal Melting Furnace Scrap Metal Cans Recycling Melting




1. Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric,manual, hydraulic or other overturn mode as needed;
6. Complete set equipment can realize full automatic remote control, also including PLC programmable controller and HMI man-machine interface or industrial control computer system and industrial control configuration software and all kinds of sensors, etc. Can realize automatic constant temperature, automatic oven, anti wear furnace alarm, such as automation, use more secure, more convenient!



High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace 0



Power protection measures include:


  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection

Technical parameter of the High Efficiency Scrap Metal Melting Furnace Scrap Metal Cans Recycling Melting




Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500

Rated power

300KW 500KW 1200KW 1400KW 2000KW 4500KW

Rated capacity

350kg 750kg 1500kg 2000kg 3000kg 6000kg

Matching transformer’s capacity

315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA

Input voltage

380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ

MF frequency

1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ

MF voltage

750V 750V 1400V 1480V 1460V 4800V

DC voltage

500V 500V 990V 990V 990V 1350V

DC current

600A 1000A 1000A 1410A 1010A 3300A

Maximum temperature

1800℃



High Efficiency Scrap Metal Melting Furnace Scrap Metal Cans Recycling Melting

High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace 1

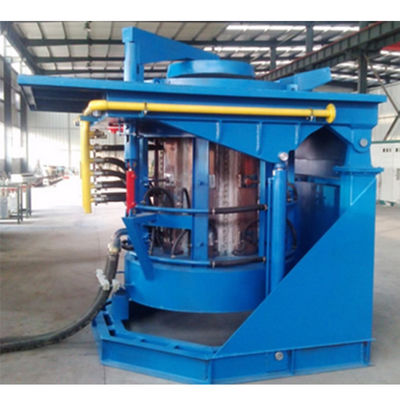

Furnace show


High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace 2

High Efficiency 2 Ton 2000 Kw Scrap Metal Melting Furnace 3
