Henan IRIS Electromechanical Equipment  Co., Ltd.
Home ProductsIndustrial Melting Furnace

5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment

5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment 5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment 5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment

Large Image :  5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-G3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD9999-USD16,999/Sset
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 Wokring days
Payment Terms: T/T
Supply Ability: 5 Set/month
Detailed Product Description
Product Name: Large Industrial Metal Melting Furnace Capacity: 5T
Power: 2500kw Input Voltage: 6Φ 750V 50HZ/ 60HZ
Electric Power Consumption: 530 Water Circulation: 100t/h
Maximum Temperature: 1800℃ DC Current: 1000A
High Light:

5000kg Large Industrial Melting Furnace

,

IRIS G3 Industrial Melting Furnace

,

2500kw Induction Melting Equipment

Large Industrial Metal Melting Furnace Induction Equipment Hydraulic Pressure



Induction melting furnace features:


1. Induction melting furnace power can adjust under different melt capacity requirement.
2. Fast melt speed.Can melt Waste iron,steel,aluminum cans ,lead,etc all kinds of metals.
3. Steel and Aluminum structure furnace body design.Work stable.
4. Machine have multiple protection.With Good magnetic isolation,safe and reliable;
5. Induction melting furnace are most used in foundry factory,rolling mill etc.
6. Induction melting furnace are customized under customer's workshop size.and working environment ,customer's special requirement.
7. Machine most used in foundry factory,to use the waste iron recycling to produce ingots.

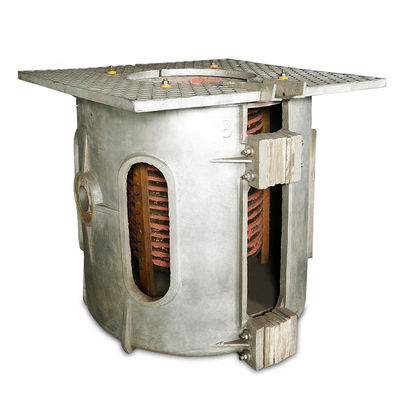

5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment 0



Technical parameter of Large Industrial Metal Melting Furnace Induction Equipment Hydraulic Pressure



Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500
Rated power 300KW 500KW 1200KW 1400KW 2000KW 4500KW
Rated capacity 350kg 750kg 1500kg 2000kg 3000kg 6000kg
Matching transformer’s capacity 315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA
Input voltage 380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ
MF frequency 1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ
MF voltage 750V 750V 1400V 1480V 1460V 4800V
DC voltage 500V 500V 990V 990V 990V 1350V
DC current 600A 1000A 1000A 1410A 1010A 3300A
Maximum temperature 1800℃




Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection




5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment 1

5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment 2

Contact Details
Henan IRIS Electromechanical Equipment Co., Ltd.

Contact Person: Karen

Tel: 86-37160993921
