Product Details:
Payment & Shipping Terms:
|
Product Name: | Melting Metals Copper Induction Oven Smelting Scrap Steel Induction Heating Furnace Price | Capacity: | 1500kg |
---|---|---|---|
Power: | 1000kw | Input Voltage: | 575V |
Input Current: | 526A | DC Voltage: | 775V |
DC Current: | 1290A | MF Voltage: | 2800V |
MF Frequency: | 100-400HZ | Application: | Melting Metal |
High Light: | 1500kg Industrial Metal Melting Furnace,1.5T Industrial Metal Melting Furnace,1500kg cast iron melting furnace |

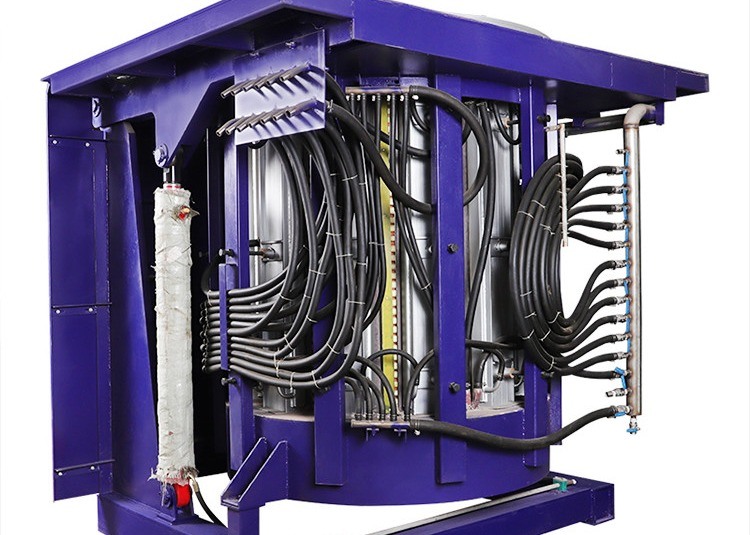

Melting Metals Copper Induction Oven Smelting Scrap Steel Induction Heating Furnace Price
Induction melting furnace advance:
1.Cooperating with researching and scientific institute, our factory designs and manufacture most advantage induction furnace and own 24 patents.
2.We choose high quality accessories ,which are made by domestic famous brand.
(1) Yoke: Silicon steel sheet with 0.27mm thick and high magnetic perme ability produced by Wuhan Iron and Steel Company Limited

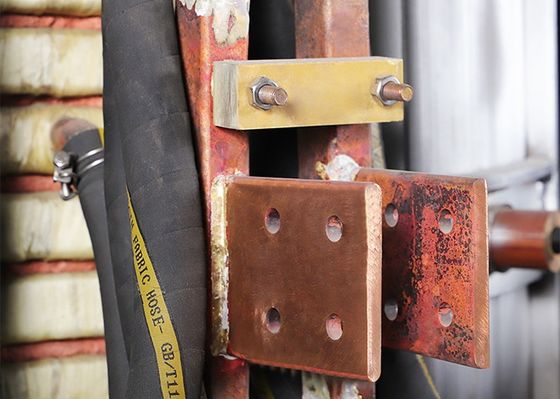

(2) Cooper bar: high quality cooper bar producted by CHINACO Luoyang Copper Co., Ltd.
(3) Wall thickness of induction coil : 5mm-8mm
(4) Thyristor: Produced by TECHSEM .
Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace
Model | KGPS-300 | KGPS-500 | KGPS-1200 | KGPS-1400 | KGPS-2000 | KGPS-4500 |
Rated power |
300KW | 500KW | 1200KW | 1400KW | 2000KW | 4500KW |
Rated capacity |
350kg | 750kg | 1500kg | 2000kg | 3000kg | 6000kg |
Matching transformer’s capacity |
315KVA | 630KVA | 1250KVA | 1800KVA | 2500KVA | 5500KVA |
Input voltage |
380V 50-60HZ | 750V 50HZ | 750V 50HZ | 6x750V 50HZ | 6x750V 50HZ | |
MF frequency |
1000HZ | 1000HZ | 800HZ | 500HZ | 500HZ | 300HZ |
MF voltage |
750V | 750V | 1400V | 1480V | 1460V | 4800V |
DC voltage |
500V | 500V | 990V | 990V | 990V | 1350V |
DC current |
600A | 1000A | 1000A | 1410A | 1010A | 3300A |
Maximum temperature |
1800℃ |
