200kg 300kg 500kg Copper Melting Induction Furnace Small Furnace For Melting Metal

200kg 300kg 500kg Copper Melting Induction Furnace Small Furnace For Melting Metal
200kg 300kg 500kg Copper Melting Induction Furnace Small Furnace For Melting Metal 200kg 300kg 500kg Copper Melting Induction Furnace Small Furnace For Melting Metal 200kg 300kg 500kg Copper Melting Induction Furnace Small Furnace For Melting Metal 200kg 300kg 500kg Copper Melting Induction Furnace Small Furnace For Melting Metal

Large Image :  200kg 300kg 500kg Copper Melting Induction Furnace Small Furnace For Melting Metal

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9001
Model Number: 250KG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6900-7900USD/Set
Packaging Details: export wooden box
Delivery Time: within 15 working days
Payment Terms: T/T
Supply Ability: 30 sets /month
Detailed Product Description
Product Name: 200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace Application: Metal Melting
Capacity: 250KG Raw Material: Aluminum,copper Steel
Melting Time: 40-60 Minutes Power: 250KW
Voltage: 3*380V Rated Frequency: 1000HZ
Heating Method: Induction Method Cooling Way:: Water Cooling
High Light:

500kg Copper Melting Induction Furnace

,

300kg Copper Melting Induction Furnace

,

200kg small copper melting furnace

200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace

Product Description


200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace advantage as follows:
High melting efficiency for the scarp metal.Structure compact,strong over load ability, Furnace easy to operating process and melting safety.The temperature surrounding the furnace is lower, dustless, good working environment.You can choose the environmental protection equipment.




Technical Parameter
Basic Parameters
CapacityPowerVoltageCabinet size (mm)Cabinet weightFurnace Body weight
100KG100KW3*380V1000*800*17000.5T0.3T
250KG250KW3*380V1300*850*20000.8T0.7T
500KG400KW3*380V1300*850*20001T1T
1T800KW3*660V1300*850*20001.2T1.3T
1.5T1000KW3*660V1300*850*20001.2T1.8T
2T1500KW3*660V2400*1000*20001.6T2T
5T3000KW6*950V2400*1000*20002.5T4.5T
10T6000KW6*1250V3500*1000*22003T23T
15T10000KW6*1250V4000*1200*22003.5T32T



200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace

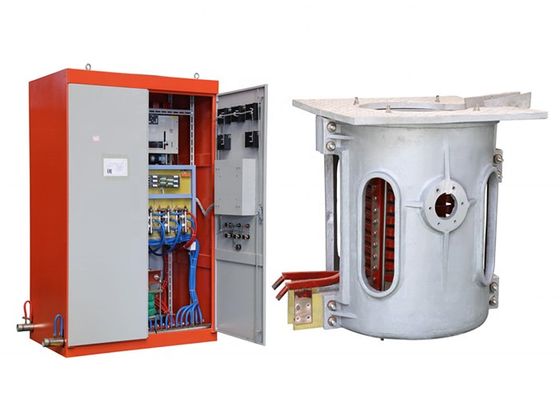

1. KGPS Power supply cabinet
2. Induction furnace body
3. Closed cooling system (option)





200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace





Detailed Images

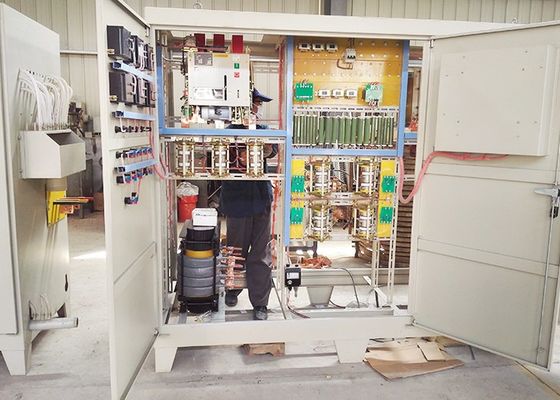

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information


200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace
200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace


200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace

Export Market

 200kg 300kg 500kg Small Copper Melting Induction Furnace Aluminum Shell Induction Furnace
