Product Details:
Payment & Shipping Terms:
|
| Product Name: | 35kw Induction Coil Heater Small Copper Steel Melting Furnace 5kg 10kg | Material: | Copper |
|---|---|---|---|
| Capacity: | 5kg-10kg | Power: | 35kw |
| Meltimg Time: | 10 Mins | Module: | IGBT |
| Type: | Induction Furnace | Application: | Mutifunctional |
| Highlight: | 35kw Copper Steel Melting Furnace,10kg Copper Steel Melting Furnace,5kg induction metal melting furnace |
||

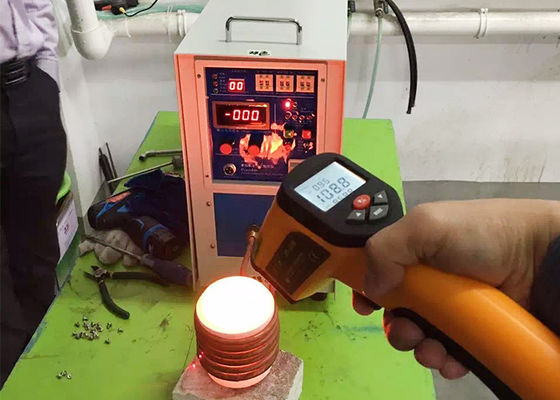

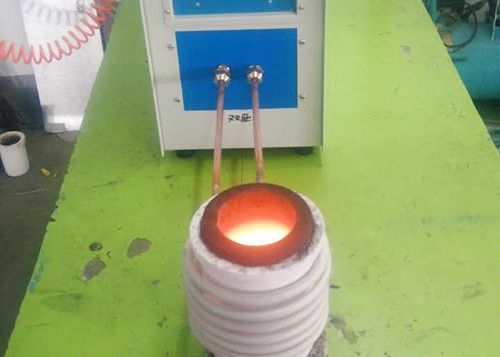

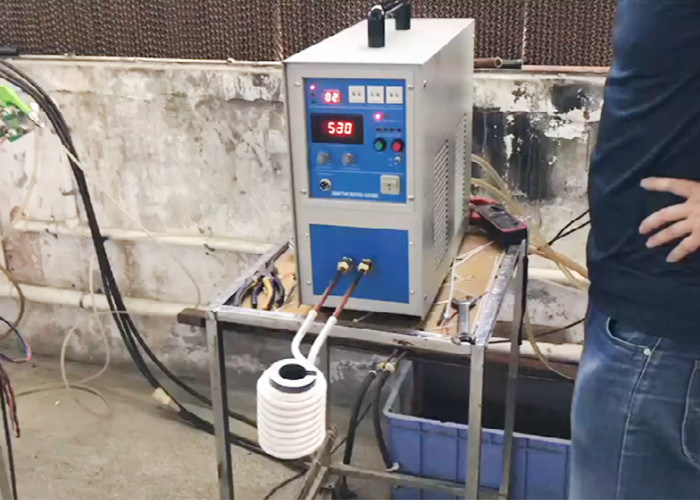

35kw Induction Coil Heater Small Copper Steel Melting Furnace 5kg 10kg
Principle of the 35kw Induction Coil Heater Small Copper Steel Melting Furnace 5kg 10kg
The high frequency induction melting furnace is an induction heating machine. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.
Main Features of 35kw Induction Coil Heater Small Copper Steel Melting Furnace 5kg 10kg
1. Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Display of heating power and heating current and oscillating frequency.Machine power can be adjust stable.
4. Easy installation, simple operation.Safe and reliable. No high voltage, very safe for operating people.
Specifications of the 35kw Induction Coil Heater Small Copper Steel Melting Furnace 5kg 10kg
| Model | Power | Melting capacity for different materials | ||
| Iron, steel | Gold, silver, copper | Alluminium | ||
| GP-15 | 5KW | 0.5KG | 2 KG | 0.5 KG |
| GP-25 | 8KW | 1 KG | 4 KG | 1 KG |
| ZP-15 | 15KW | 3KG | 10KG | 3KG |
| ZP-25 | 25KW | 5KG | 20KG | 5KG |
| ZP-35 | 35KW | 10KG | 30KG | 10KG |

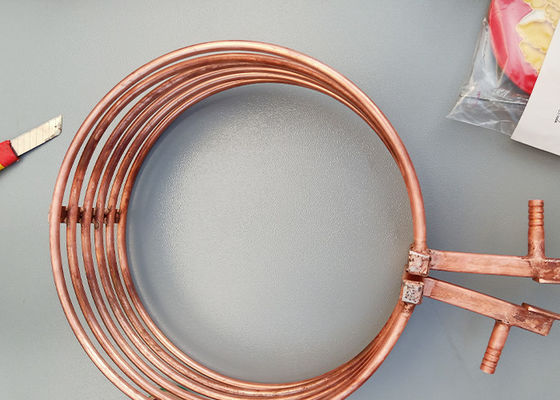

Spare parts crucibles:
