35KW High Frequency Induction Heater

35KW High Frequency Induction Heater
35KW High Frequency Induction Heater 35KW High Frequency Induction Heater 35KW High Frequency Induction Heater 35KW High Frequency Induction Heater

Large Image :  35KW High Frequency Induction Heater

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO
Model Number: 35KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2449
Packaging Details: Export Woodern Box
Delivery Time: within 3-7 working days
Payment Terms: T/T
Supply Ability: 500 set /month
Detailed Product Description
Product Name: Small Portable Heating Speed High Frequency Gold Silver Copper Steel Induction Melting Furnace Input Voltage: 3Phase 380V 50/60Hz
Maximum Input Power: 35KW Cooling Water: ≥6L/min (1.6 Gallons)
Output Frequency: 30-80KHz Heating Current: 12-70A
Max Input Current: 55A Auto Heating Time: 1-99S
High Light:

35KW High Frequency Induction Heater

,

80KHz High Frequency Induction Heater

,

35KW high frequency induction heating machine

Low Price High Frequency Induction Heater For Metal Heat Treatment



Feature of High Frequency Induction Heater For Metal Heat Treatment:



1. IGBT module and Inverting technologies of third generation been used.Higher reliability and lower maintenance cost.

2. 100% Duty cycle, continuous working is allowed at maximum power output.

3. Constant current or constant power status can be selected accordingly to achievehigher heating efficiency.

4. Display of heating power and heating current and oscillating frequency.

5. Simple to install, Installation can be done by unprofessional person very easily.

6. Convenient to change furnace crucible for different material melting.

7. Use ready-made crucible: no need skilled person to make lining with refractory material, convenient for users.

8. Small size, light weight, and convenient to move.

9. Low power consumption, with electromagnetic grinding capability, providing uniform smelting.Save at least 20% energy comparing with KGPS thyristor type induction system.



Parameter of the High Frequency Induction Heater For Metal Heat Treatment:



Product name High frequency induction heating machine
Models HF-35AB Input voltage 3Phase 380V 50/60Hz
Maximum input power 35KW Cooling water 6L/min (1.6 gallons)
Output frequency 30-80KHz Heating current 12-70A
Max input current 55A Duty cycle 100%
Auto heating time 1-99S Net weight 68kg
Auto retaining time 1-99S Size(mm) 710*660*760
Auto cooling time 1-99S Packing weight 88kg

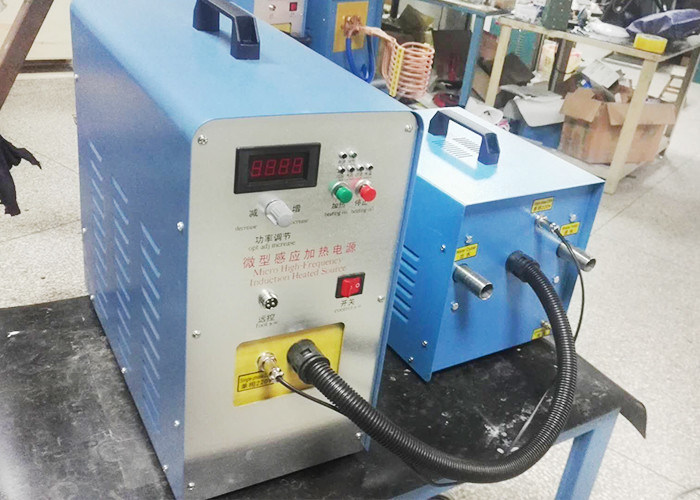

Advantages of separated transformer of High Frequency Induction Heater For Metal Heat Treatment:



1. in induction heating machines, the high frequency transformer is separated from the generator, with 2 meters connecting cable at least.

2. it is suitable to use in the dirty or corrosive surroundings, the generator can be put in a clean space to increase the reliability.

with the small size and light weight of the separated transformer, it is convenient to use in the production line and easily assembled inside the machinery or moved mechanism.



High Frequency Induction Heater For Metal Heat Treatment

High Frequency Induction Heater For Metal Heat Treatment

FAQ:



Q:How to install your machine

A:We have paper installation instructions and video, and you can contact us to teach you


Q:Do you have any equipment in stock?

A:Yes, we have some of the best-selling models in stock, and can shipped immediately after payment


Q:How is your quality control?

A:We have a professional team responsible for product testing and packaging before delivery, you can be assured to purchase.


Q:How many days can the machine arrive after I bought it?

A:Usually 5-10 days(excluding holiday),large machines take 20-30 days



Q: If the machine get damaged, what can I do ?

A: We will give you some spare parts free of charge during the one-year shelf life of the machine.For the customers who have bought the machine, if there is any problem with the machine, they can take a photo or record a video to us. We will guide the customers to perform the repair.


Q.How about the warranty?

A: All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
