Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2kg Platinum Palladium Melting Furnace 30KW 2000 Degrees | Model: | 30kw |
|---|---|---|---|
| Voltage: | 220V/380V 50HZ | Max Input Current: | 52A |
| Melting Time: | 5-10 Mins | Cooling Water Flow: | 25/0.1 |
| Capacity: | 1-10kg （gold） | Max Temperature: | 2600℃ |
| Type: | Induction Heating | Core Components: | IGBT |
| Highlight: | 2kg Platinum Palladium Furnace,30KW Platinum Palladium Furnace,2000 Degrees Induction Heating Furnace |
||

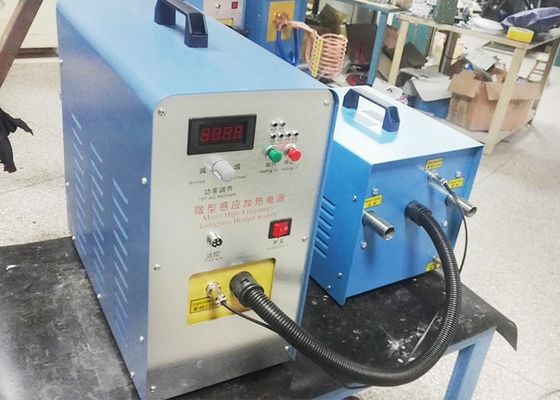

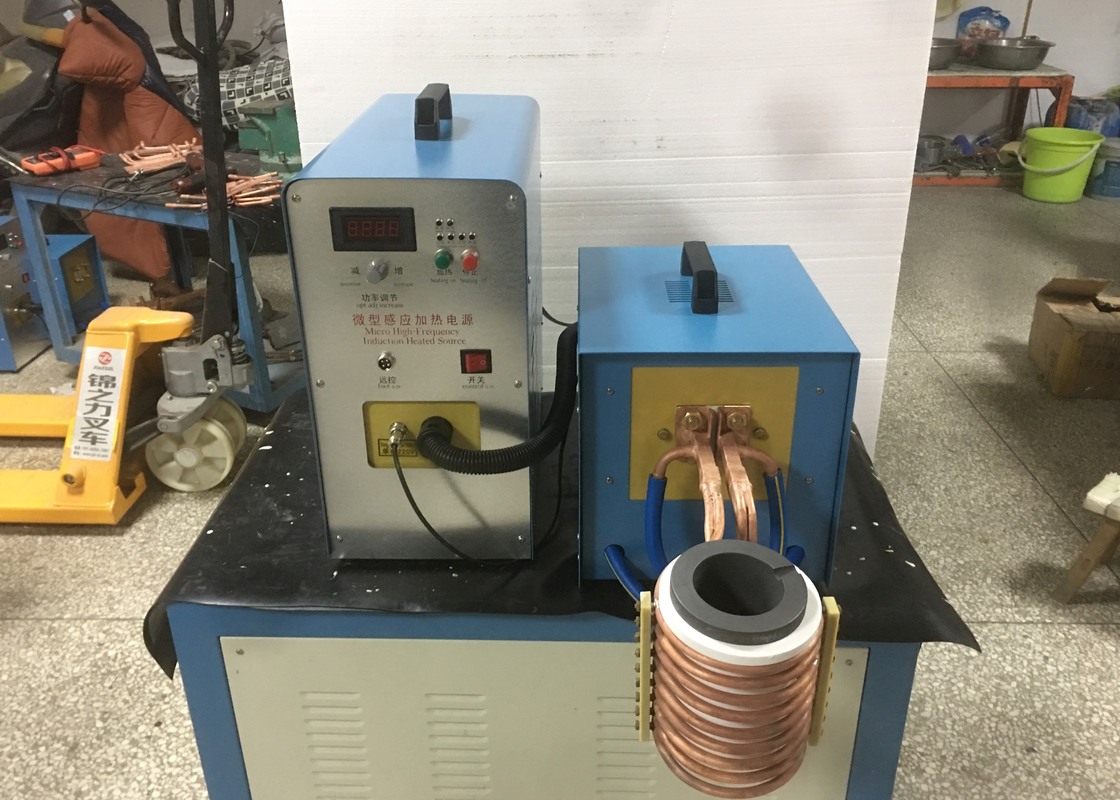

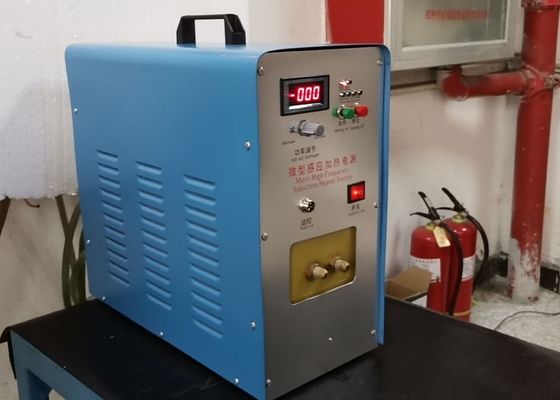

2kg Platinum Palladium Melting Furnace 30KW 2000 Degrees
Product Features:

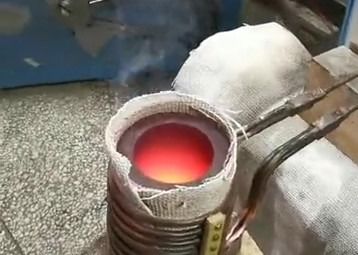

The machine‘s actual melting temperature can reach 2100 ℃ , can melt different kinds of metals (Platinum, Palladium, Stainless Steel, Gold, Silver, Copper, Alloy etc), especially can melt platinum. The melting time is very fast, which can melt in 5-10mins. This features make the Platinum Melting Furnace stand in first-class melting furnace.
Technical Parameters of the 2kg Platinum Palladium Melting Furnace 30KW 2000 Degrees:
| Capacity | 1-10k |
| Rate | 25-35KHz |
| Voltage | 220V/380V 50HZ |
| Power | 30KW |
| Max input current | 52A |
| Melting time | nearly 4minutes |
| Efficiency | 95% |
| Duty cycle | 100% |
| Cooling water flow | 25/0.1 |
| Weight | 65kg |
| Dimension | 265*600*540mm |
| Accessories | one crucible tong& a pair of gloves for free |
After you determine the model, you need to determine your crucible:
1. Use graphite crucible to melt gold
2. Use silicon carbide crucible to melt copper
3. Use magnesium oxide crucible to melt steel
If you are interested in small high frequency melting furnace, please contact me to get the more details.
