40kw Handheld High Frequency Induction Heating Machine Energy Saving

40kw Handheld High Frequency Induction Heating Machine Energy Saving
40kw Handheld High Frequency Induction Heating Machine Energy Saving 40kw Handheld High Frequency Induction Heating Machine Energy Saving 40kw Handheld High Frequency Induction Heating Machine Energy Saving 40kw Handheld High Frequency Induction Heating Machine Energy Saving 40kw Handheld High Frequency Induction Heating Machine Energy Saving

Large Image :  40kw Handheld High Frequency Induction Heating Machine Energy Saving

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: CE
Model Number: IRIS-HF40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $1000-3000
Packaging Details: Wooden box Package for each set furnace
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Voltage: 220V/380V Usage: Forging Heating Hardening Heat Treatment
Warranty: 1year Condition: New
Power(w): 45kw Cooling Water: 0.2mpa
Color: Blue White Heating Time: According Your Requirement
Visit Factory: Welcome Product Name: High Frequency Heating Machine
Cooling Water Pressure: 5L/min Cooling Temperature: >50C
High Light:

40kw high frequency induction heating machine

,

IRIS high frequency induction heating machine

,

Handheld high frequency heating machine

A Energy saving 40kw handheld heater machine high frequency heating machine harden descraption:
Our research and development of high-frequency machine has a set of unique inverter electronics, coming from the external power input 50Hz low frequency to high frequency alternating current into alternating current more than 20000Hz; after a high-frequency current to the coil, using electromagnetic induction principle convert high frequency magnetic field, and a magnetic field acting on the metal objects; use of eddy current effect, generates a magnetic field proportional to the intensity of the induced current in the metal object, the current flowing in the metal objects, it will by means of the inherent internal resistance value, the principles of thermal effects generated by the current heat, this heat is generated directly within the object, so that the heating mode, speed, high efficiency. If necessary, it can melt any metal object in an instant. And it's heating rate and temperature are controlled.

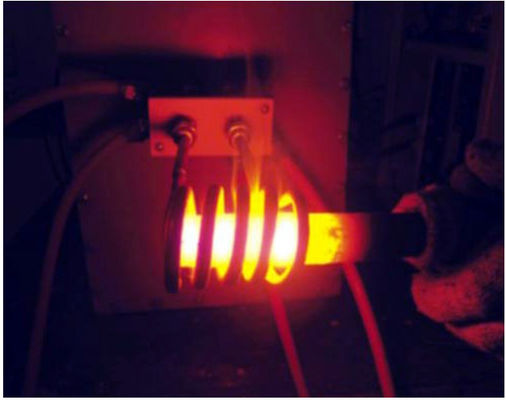

40kw Handheld High Frequency Induction Heating Machine Energy Saving 0
Energy saving 40kw handheld heater machine high frequency heating machine harden usage:
1, Heat treatment: local or overall quenching, annealing, tempering and diathermy of various metals;
2, Hot forming: whole forging, local forging, hot upsetting and hot rolling;
3, Welding: brazing of various metal products, welding of various tool blades and saw blades, welding of steel pipes and copper pipes, welding of the same and different metals;
4, Metal melting: the (vacuum) melting, casting and evaporation coating of gold, silver, copper, iron, aluminum and other metals;
5, Other applications of high frequency furnace: semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implantation, plastic, etc.

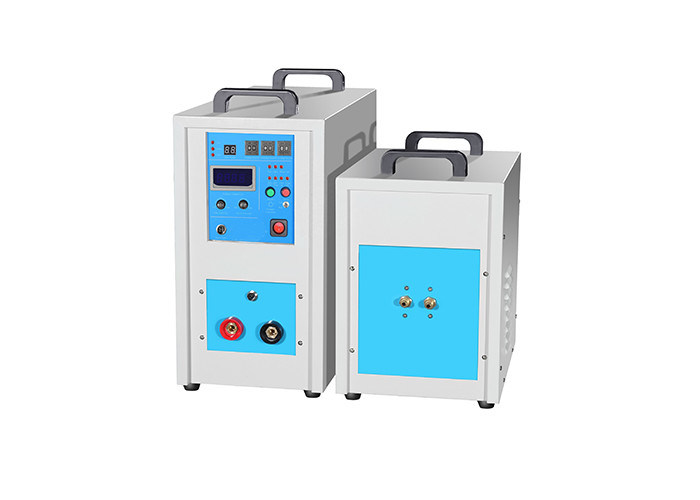

40kw Handheld High Frequency Induction Heating Machine Energy Saving 1

Energy saving 40kw handheld heater machine high frequency heating machine harden advantage:

1.IGBT(INFINEON) technology, high conversion efficiency;

2.Energy saving 30% , compared to SCR/KGPS technology Much more efficient than gas-fired and coal-fired method 100% start-up success rate; power factor > 95%

3.Perfect and complete protection functions, increasing machine's reliability & stability

4.No special foundations required, Low operating cost, Easy operation

5.Modular design, ease of maintaining and repairing.

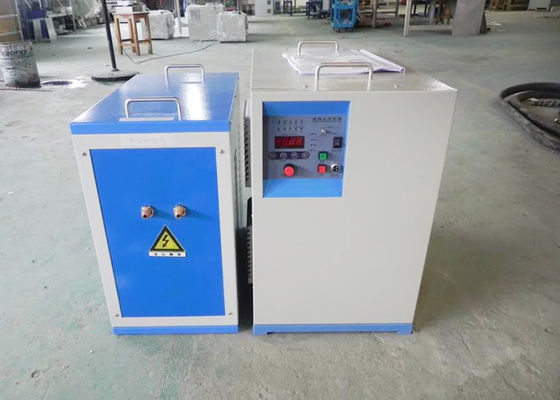

40kw Handheld High Frequency Induction Heating Machine Energy Saving 2

Energy saving 40kw handheld heater machine high frequency heating machine harden heating principle

The flow of high-frequency and high-frequency machine is made of circular or other shape of the heating coil (usually with copper production). A coil which produces changes in the magnetic polarity of the instantaneous beam, the metal object is heated coil placed on the magnetic beam will be heated through the whole object, the object being heated inside the heating current in the opposite direction, there will corresponding large eddy currents. Because of the heated object memory in the resistance, it will have a lot of Joule heat, so that the rapid rise in body temperature itself. Metallic material is heated to achieve for all purposes.

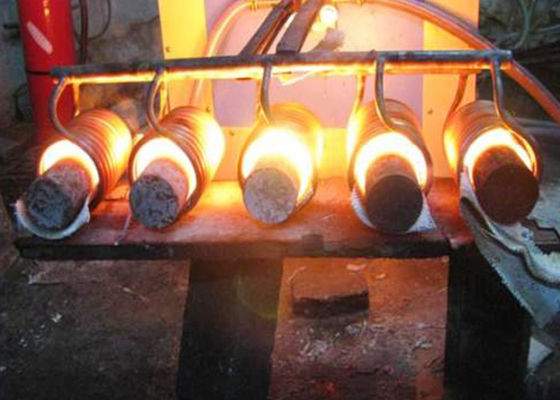

40kw Handheld High Frequency Induction Heating Machine Energy Saving 3



Energy saving 40kw handheld heater machine high frequency heating machine harden technical parameter:



Output power 40KW Dimension(mm) 460*360*365mm
Oscillation frequency 1~20KHz Gross Weight 90Kg
Voltage range 360V~420V Cooling water pressure 0.1~0.3MPa
Input current 60A Cooling water temperature < 50°C
Efficiency 95% Duty cycle 100%
Application Quenching, annealling, tempering, forging,hardening, melting


Energy saving 40kw handheld heater machine high frequency heating machine harden packing:



Standard export packaging

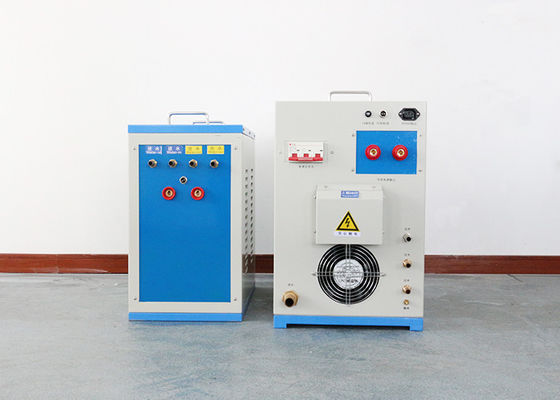

40kw Handheld High Frequency Induction Heating Machine Energy Saving 4

Company information

Contribute to the foreign trade and build an excellent supplier in Central plains of China, Zhengzhou Iris Imp & Exp Co., Ltd follows the "professional foreign trade, happy business" spirit of enterprise, and contribute to export the Chinese industrial machinery in overseas market. Our business scope includes: KGPS series thyristor medium frequency heating equipments (steel shell melting furnace, aluminum shell melting furnace, heating furnace), A two SCR series, parallel power supply, IGBT MF, HF super audio-frequency heating equipments (melting furnace, forging furnace, hardening furnace, welding machine, heating furnace), Electric resistance furnace, CNC quenching tool machines, cooling systems and ancillary transformer and other equipments.



40kw Handheld High Frequency Induction Heating Machine Energy Saving 5
