Product Name: | Industrial Tempering Furnace | Power: | 150KW |
---|---|---|---|
Capacity: | 2000kg | Size: | 2000*1000*1000mm |
Temperature: | 1150C | Voltage: | 380V |
Customization: | Support | OEM: | Acceptable |
Warranty: | 1 Year | ||
High Light: | 1150C Tempering Furnace,150KW Tempering Furnace,Chemical Industry Industrial Electric Furnaces |
The equipment structure of Industrial electric furnaces chemical industry high quality industrial tempering furnace

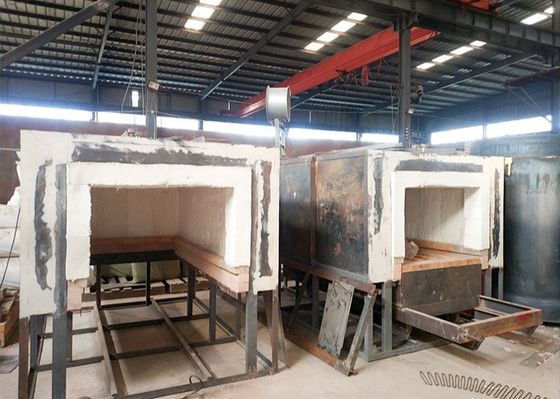

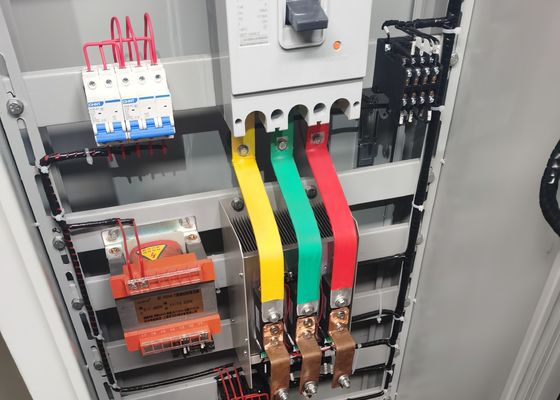

The trolley type electric resistance furnace is mainly composed of a furnace shell, fireproof and heat preservation, heating elements, trolley walking and furnace door lifting mechanism, furnace bottom heat resistant plate and electrical control system.
1. Industrial electric furnaces chemical industry high quality industrial tempering furnace
Industrial electirc furnace is a kind of periodic working machine, mainly used in heating treatment of small metal workpieces, chemical analysis, thermocouple checking, grinding wheel sintering, diamond sintering, smelting or purifying of the rare and precious metals and other scientific experiments. Our machines can be applied in universities and colleges, scientific research institutes, mining enterprises, quality and technology supervision agencies, and other labs.
2. Industrial electric furnaces chemical industry high quality industrial tempering furnace of fire and insulation
The furnaces chemical industry is made by welding high-quality cold-rolled plates. The hearth is made of highly heat-resistance materials, such as refractory brick, Mullite brick or ceramic fiber. The heating parts consist of high-temperature resistance wire, silicon carbide rod or MoSi2 rod. We use lightweight bricks or silicon wool felt as insulation materials, and the surface is covered by high-temperature paint.
3. Industrial electric furnaces chemical industry high quality industrial tempering furnace technical parameter
Model |
Chamber Size length/Width/Height(mm) |
External Size length/Width/Height(mm) |
Power (kw) |
Voltage (V) |
Max Temp (℃) |
Temp Raising Time (H) |
Max Capacity (kg) |
3-15-9 | 650*300*250 | 1450*1300*1790 | 15 | 380 | 950 | ≤2.5 | 80 |
3-30-9 | 950*450*350 | 1920*1620*2140 | 30 | 3 phase 380 | ≤2.5 | 200 | |
3-45-9 | 1200*600*400 | 2220*1930*2190 | 45 | 3 phase 380 | ≤2.5 | 400 | |
3-60-9 | 1500*750*450 | 2690*2180*2240 | 60 | 3 phase 380 | ≤3 | 700 | |
3-75-9 | 1800*900*550 | 3030*2350*2440 | 75 | 3 phase 380 | ≤3.5 | 1200 |
