Industrial Pit Type Tempering Furnace High Temperature Heat Treatment Equipment

High Temperature Heat Treatment Equipment Pit Type Tempering Furnace For Industrial is suitable for quenching, aging and other heat treatment of medium and small aluminum alloy parts. Due to the particularity of the workpiece and the process, the electric furnace is required to have temperature control accuracy, temperature control deviation,it has high technical performance in terms of uniform furnace gas.

Technical parameter of the High Temperature Heat Treatment Equipment Pit Type Tempering Furnace For Industrial​:

Structure of  High Temperature Heat Treatment Equipment Pit Type Tempering Furnace For Industrial​​:

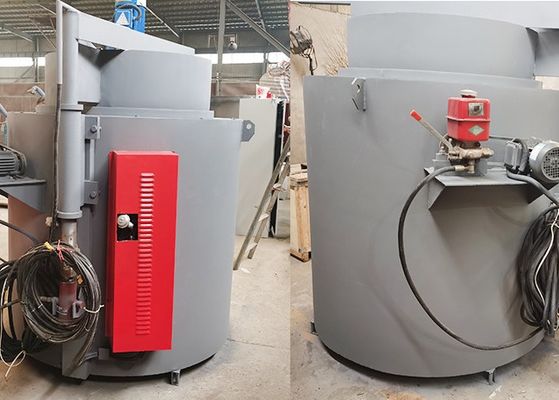

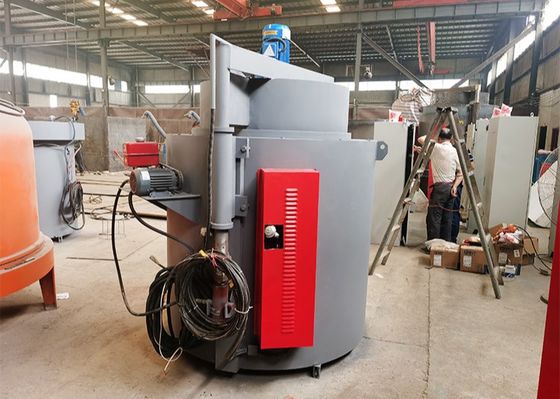

The complete set of equipment consists of furnace body, hot air circulation system, furnace cover lifting mechanism, control cabinet and other systems.

The outer shell of the furnace body is formed by welding plates, the inner refractory layer is made of fiber folded blocks, and the heat preservation layer is also of fiber structure. The heating element is processed into a corrugated shape and installed on the circumference. The furnace body adopts this structure, and the service life is extremely long, up to ten years.

The hot air circulation system is composed of a fan, a fan blade, an air guide plate and a fan tube. The fan is placed on the top of the furnace cover, and the fan blades are made of heat-resistant steel into centrifugal fan blades. The air guide plate and the air guide tube in the furnace are also made of heat-resistant steel, and the furnace gas in the furnace is thermally circulated through the hot air circulation system to ensure the uniformity of the aluminum alloy workpiece heating in the furnace.

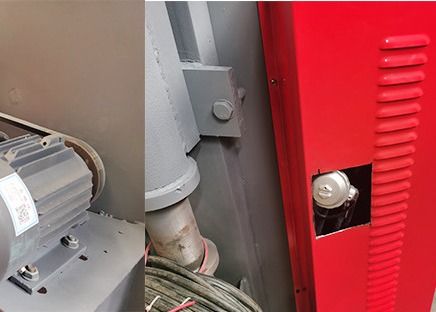

The furnace cover lifting mechanism is composed of furnace cover, supporting shaft, shaft support, lifting arm, hydraulic pump, etc. The structure is simple, the lifting speed is fast, and the performance is reliable, so the slam rate is extremely low;

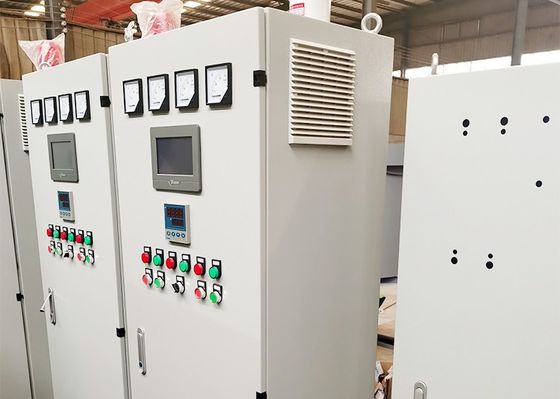

Control cabinet:

1. Temperature control instrument: Xiamen Yudian 518AG3L1 PID intelligent instrument

2. Temperature control power components: West SSR300A/1700V high current and high voltage SCR module

3. Heating element: Beijing Shougang, 1.2×18 high temperature 0Cr21AL6Nb resistance tape

4. Electrical components: Chint Electric

5. Thermocouple: Shanghai Second Automation Instrumentation Factory.

Zhengzhou Iris Electromechanical Equipment Co., Ltd. is an excellent supplier established in the Central Plains region, adhering to the enterprise spirit of "professional foreign trade, professional heating" and contributing to the overseas export of China's industrial heating equipment. Our business scope includes: KGPS series thyristor intermediate frequency heating equipment (steel shell melting furnace, aluminum shell melting furnace, heating furnace), two SCR series, parallel power supply, IGBT MF, HF super audio heating equipment (melting furnace, forging furnace, Quenching furnace, welding machine, heating furnace), resistance furnace, CNC quenching machine tool, cooling system and auxiliary transformer and other equipment.

Q1: How do you control the quality?

A1: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.

Q2: Our workers are not professional on the equipment, how can we solve that?

A2:Don't worry, when the furnace arrive at the clients' plant, our engineer will go and assist in installation,commission, and training until the workers can operate by themselves.

Q3:What about your package? If damages happen, how do you solve?

A3:We take container loading, wire fixing. If damages occur, we will send the spare parts for you.

Q4: Is it all right to make customer's own brand name?

A4: Sure, with your authorization of brand. We accept OEM service.

Q5: How long is your delivery time?

A5: Generally it is 10-20 days if the parts are in stock. or it is 20-35 days if the parts are not in stock, it is according to quantity.
