dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace

China Henan IRIS Electromechanical Equipment  Co., Ltd. certification
очень хорошо

—— Alexander T

recd in good order . Look for Ms Carrie @ Carrie@irisequipment.com. Very soft spoken girl. Can able to modify as per the need.

—— Nagendra H R

I'm Online Chat Now

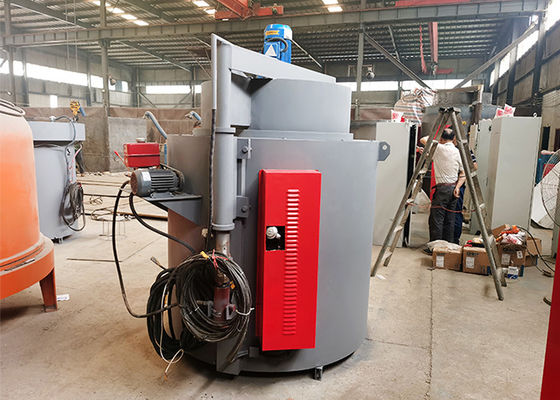

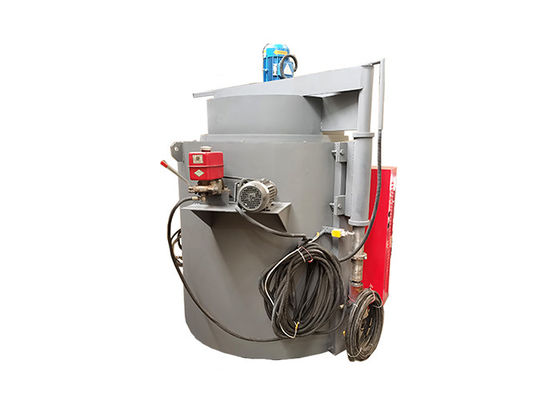

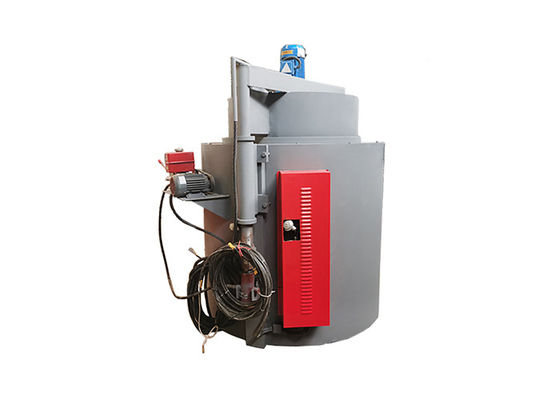

dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace

dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace
dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace
video play

Large Image :  dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9000
Model Number: IRIS-JQ65
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7000-18000/set
Packaging Details: Standard export wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 SETS per month
Detailed Product Description
Product Name: Tempering Furnace Power: 65KW
Capacity: 400kg Effective Size: Ф700mm*1000mm
Max Temperature: 750C Temperature Deviation: ±2℃
Customization: Support OEM: Acceptable
Warranty: 1 Year Temperature Control Method: Intelligent Instrument PID Control
High Light:

Tempering Heat Treatment Furnace

,

Dia 700mm Heat Treatment Furnace

,

Pit Type Gas Carburizing Furnace

Tempering heat treatment furnace Pit Type Carburizing Furnace Tempering Furnace​​​ Description



Well resistance furnace and tempering furnace are mainly used for high temperature tempering, annealing and other heat treatment of various metal materials.

Well type carburizing furnace is suitable for all kinds of mechanical parts that need carburizing, carbon ammonia co-carburizing and carbon potential atmosphere protection heating process.

dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace 0



1. Tempering heat treatment furnace Pit Type Carburizing Furnace Tempering Furnace Characteristics


1. It is not easy to deform large shaft parts and pipe fittings when vertical lifting.
2. adopt new environmental protection compound furnace lining, heat preservation effect is good, energy saving is better than other furnace type.
3. the furnace temperature using microcomputer intelligent instrument, SCR power regulation, pressure regulation, can automatically complete the temperature, heat preservation, cooling and other processes, can use programming control, automatic control box record storage and operation process, with group control, networking and other functions.



dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace 1



2.Tempering heat treatment furnace Pit Type Carburizing Furnace Tempering Furnace​​​ Control


1.650℃ series equipped with special gas circulation mechanism and comprehensive ventilation unit, large flow, good air tightness, good uniformity of furnace temperature. 2. Adopt new environmental protection composite furnace lining, heat preservation effect is good, energy saving is better than other furnace type 3. The furnace cover adopts innovative multi-layer sealing structure, and adopts manual lever, electro-hydraulic and turbo worm and other mechanisms to lift. 4. the furnace temperature is uniform, up to ±5℃, temperature control precision 1℃



dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace 2

3. Tempering heat treatment furnace Pit Type Carburizing Furnace Tempering Furnace Technical Parameter




Model IRIS-JQ65
Electric furnace power 65kw
Input voltage 480v 60 HZ
Effective size Ф700mm*1000mm
Maximum temperature 750℃
Number of temperature control zones 1 zone
Temperature control accuracy ≤±2℃
Furnace Size 1600mm×1800mm×2100 mm
Furnace Weight 2800kg
Productivity 100kg/h
Heating method High temperature resistance tape
Temperature control method Intelligent digital display instrument and PID temperature control; with over temperature alarm
Heating time less than 1.2 hours



Tempering heat treatment furnace Pit Type Carburizing Furnace Tempering Furnace Advantage


1. Absorption of domestic and foreign advanced technology design and manufacture of new well gas carburizing furnace, using hot air circulation/cooling system, with simple operation, simple maintenance, low failure rate, long service life and other characteristics.
2. Combined with the user's process requirements and different heat treatment processes, different kinds of furnace atmosphere control system (including carbon control instrument, oxygen carbon head, electromagnetic smoke, etc.) are used to achieve more accurate layer penetration of the workpiece, the workpiece hardness is more uniform.
3. according to the requirements of users can choose domestic or imported intelligent program instrument, carbon control instrument.



.dia 700mm Tempering Heat Treatment Furnace Pit Type Gas Carburizing Furnace 3
