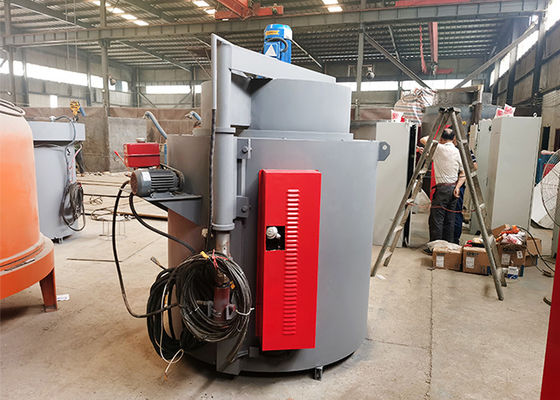

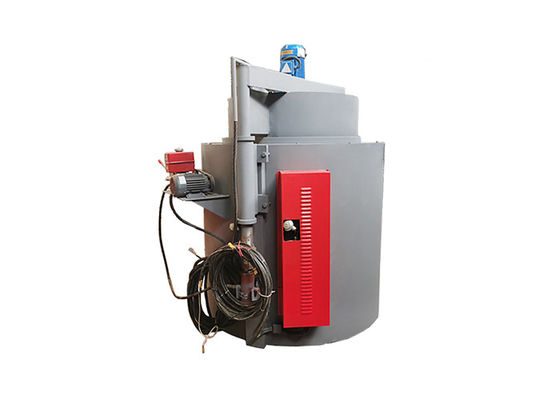

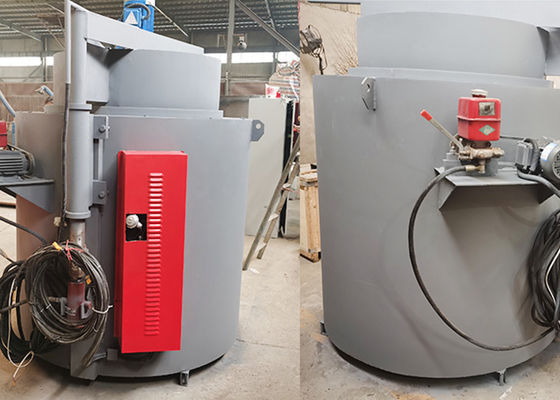

Automatic Continuous Hardening And Tempering Furnace 550C

Automatic Continuous Hardening And Tempering Furnace 550C
Automatic Continuous Hardening And Tempering Furnace 550C Automatic Continuous Hardening And Tempering Furnace 550C Automatic Continuous Hardening And Tempering Furnace 550C Automatic Continuous Hardening And Tempering Furnace 550C Automatic Continuous Hardening And Tempering Furnace 550C

Large Image :  Automatic Continuous Hardening And Tempering Furnace 550C

Product Details:
Place of Origin: Henan,China
Brand Name: IRIS
Certification: CE
Model Number: IR-TF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 15000-25000 per set
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500SETS per month
Detailed Product Description
Product Name: Hardening And Tempering Furnace Temperature: 550 Degree
Size: 1600×1800×2100 Mm Power: 36 Kw
Furnace Weight: 2500 Kg Max Capacity: 400kg
High Light:

Continuous Hardening And Tempering Furnace

,

Hardening And Tempering Furnace 550C

,

Automatic continuous tempering furnace

Hardening And Tempering Furnace Tempering Machine Automatic

Continuous Hardening And Tempering Furnace



The program control heating method is adopted, which has the unparalleled advantages of conventional

control in the temperature control where the step heating and the heating rate are required. It has many

advantages such as high temperature control accuracy, good followability, high degree of automation,

many storage curves, convenient retrieval, long data storage time (up to 10 years), etc., and is the first choice

for modern temperature control. A program-controlled instrument can store multiple curves or dozens of

inflection points to meet various complex temperature control requirements.



Parameter

Effective size Ф700mm×1000mm
 Rated power 36KW
Maximum temperature  550 ℃
Heating zones 1 zone
 Temperature control intelligent instrument PID
 Power executive components  SSR360A/1100V solid state power module
 Temperature control deviation  ±2°C
Temperature control accuracy 0.3 grade
Soaking method forced convection with fan on the furnace top
Furnace temperature uniformity ≤±3℃
 Rated furnace capacity ≤400Kg
Heating time of empty furnace ≤1.2h
Empty furnace loss ≤20KW
Furnace wall temperature rise  ≤ ambient +30 ℃
Furnace cover lifting method hydraulic
 Furnace  weight  2800Kg
 Dimensions   1600mm×1800mm×2100mm
