1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace For Tempering

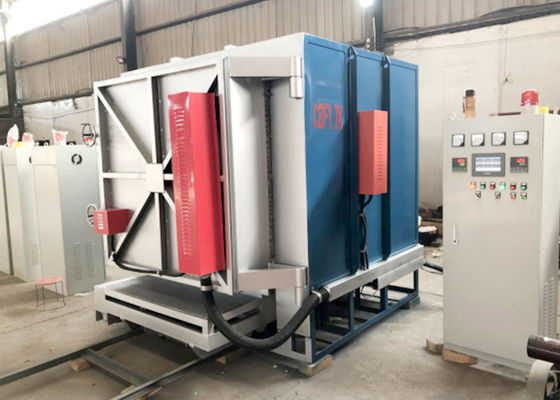

Large Image : 1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace For Tempering

Product Details:

Place of Origin:	China
Brand Name:	IRIS
Certification:	ISO9000
Model Number:	IRIS-150

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5000-7000/set
Packaging Details:	Standard export wooden box packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 SETS per month

Contact Now

Detailed Product Description

Product Name:	Heat Furnace Tempering Furnace	Power:	150KW
Capacity:	2000kg	Size:	200010001000mm
Temperature:	1150C	Voltage:	380V
Customization:	Support	OEM:	Acceptable
Warranty:	1 Year
Highlight:	1300 Degree Heat Treatment Furnace , Heat Treatment Furnace for Tempering , Trolley Type Electric Heat Furnace

1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace Tempering Furnace

The 1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace Tempering Furnace is mainly composed of a furnace shell, fireproof and heat preservation, heating elements, trolley walking and furnace door lifting mechanism, furnace bottom heat resistant plate and electrical control system.

1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace For Tempering 0

1. 1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace Tempering Furnace

Trolley type heating treatment furnace used for heat treatment of general metal parts in the oxidation atmosphere such as

normalizing, annealing and quenching.

Application:mainly used in a variety of mechanical parts heat treatment, such as quenching, annealing or tempering for roller, steel ball, hammerhead of the crusher, chute liners, high chrome, high manganese steel casting,gray iron castings,iron casting.

1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace For Tempering 1

2.1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace Tempering Furnace Feature

1.The hot air circulation device makes electric furnace temperature uniformity, the workpiece heated evenly.

2. Electric furnace loading capacity, high productivity, is suitable for various kinds of parts tempering, quenching, preheating.

3. Furnace lining adopts full fiber structure, improve furnace heat preservation performance, save energy, reduce the production cost.

4. Convenient electric furnace with royal material and good operation condition.

5. No pollution, good environmental benefits.

1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace For Tempering 2

1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace For Tempering 3

3. 1300 Degree Heat Treatment Furnace Trolley Type Electric Heat Furnace Tempering Furnace Technical Parameter

Model	Chamber Size length/Width/Height(mm)	External Size length/Width/Height(mm)	Power (kw)	Voltage (V)	Max Temp (℃)	Temp Raising Time (H)	Max Capacity (kg)
3-15-9	650300250	145013001790	15	380	950	≤2.5	80
3-30-9	950450350	192016202140	30	3 phase 380		≤2.5	200
3-45-9	1200600400	222019302190	45	3 phase 380		≤2.5	400
3-60-9	1500750450	269021802240	60	3 phase 380		≤3	700
3-75-9	1800900550	303023502440	75	3 phase 380		≤3.5	1200
