Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tempering Furnace | Power: | 65KW |
|---|---|---|---|
| Capacity: | 400kg | Effective Size: | Ф700mm*1000mm |
| Max Temperature: | 750C | Temperature Deviation: | ±2℃ |
| Customization: | Support | OEM: | Acceptable |
| Warranty: | 1 Year | Temperature Control Method: | Intelligent Instrument PID Control |
| High Light: | 400kg Steel Hardening Tempering Furnace,Hardening Tempering Furnace Pit Type,Pit Type Heat Treatment Furnace |
||

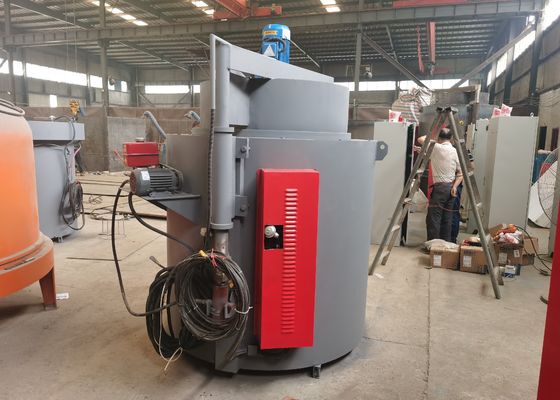

Hardening Pit Type Heat Treatment Furnace Steel Tempering Furnace Description
Heat treatment products: suitable for heat treatment of various processed products, such as: stainless steel solid melting, high manganese steel quenching, valves, flange rings, pressure vessels, rolling rods, steel pipes, steel wires, steel balls, castings, forgings, cast iron , Rolls, blades, high-speed steel, tool steel, automobile axles, diesel engine gearboxes, mining machinery, loader bridge arms and other products for quenching and tempering, annealing, tempering, and normalizing heat treatment.
1. Hardening Pit Type Heat Treatment Furnace Steel Tempering Furnace Structure

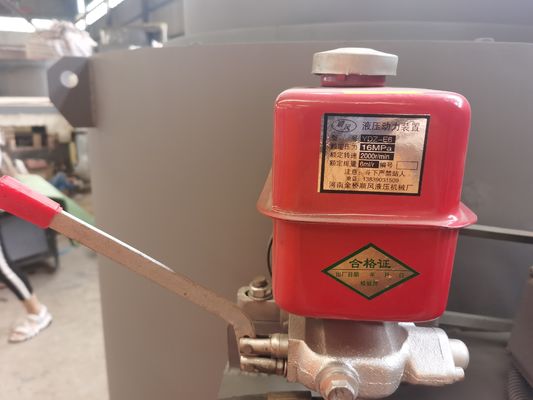

The structure is made of all-fiber aluminum silicate spun silk blankets to make modules into the furnace body. The bottom of the furnace is made of light insulation bricks and heavy refractory bricks. The heating elements are heated by resistance wires and resistance belts. For production, the furnace cover adopts mechanical transmission; the specific configuration is designed and equipped according to customer and furnace temperature requirements.
2.Hardening Pit Type Heat Treatment Furnace Steel Tempering Furnace Control
Temperature requirements: Pit tempering furnaces are divided into high temperature furnaces, medium temperature furnaces and low temperature tempering furnaces. The maximum operating temperature of high temperature furnaces is within 1200°C, medium temperature furnaces are within 950°C, and low temperature tempering furnaces are within 650°C, according to their respective products. Feature selection, furnace size and load are ordered according to customer requirements.

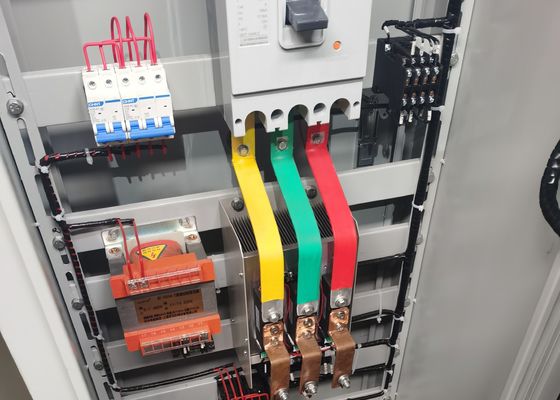

Control: control adopts contactor, thyristor, solid state, module, electronic digital display, intelligent digital display, computer, PID, PLC, remote control, centralized control, programming control, records with middle garden diagram, and long circle diagram with paper at multiple points Recorder, can also use liquid crystal paperless recorder to record.
3. Hardening Pit Type Heat Treatment Furnace Steel Tempering Furnace Technical Parameter
| Model | IRIS-JQ65 |
| Electric furnace power | 65kw |
| Input voltage | 480v 60 HZ |
| Effective size | Ф700mm*1000mm |
| Maximum temperature | 750℃ |
| Number of temperature control zones | 1 zone |
| Temperature control accuracy | ≤±2℃ |
| Furnace Size | 1600mm×1800mm×2100 mm |
| Furnace Weight | 2800kg |
| Productivity | 100kg/h |
| Heating method | High temperature resistance tape |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over temperature alarm |
| Heating time | less than 1.2 hours |
Company information
With more than 27 years' experience, as China's metallurgical, casting, machinery manufacturing, non-ferrous metal processing and defense industries provide a large number of key industrial sensing equipment, including more than other large-tonnage 20T medium frequency induction furnace, holding furnace, induction furnace and some special furnace, widely used in metal smelting, heating heat treatment (quenching and tempering), brazing, pipe, tungsten and molybdenum refractory metal sintering, vacuum melting furnace, and industrial automation controlling field.
.
