| Product Name: | Electric Glass Melting Furnace Electric Glass Melting Furnace For Sale Continuous Glass Melting Furnace | Capacity: | 1.6L-18L |
|---|---|---|---|
| Max Temperature: | 1700 Degree | Crucible Material: | High Purity Zirconium Quartz(99.99%) |
| Core Selling Point: | Accurate Temperature Control |

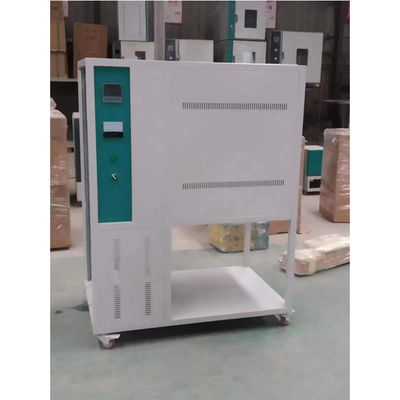

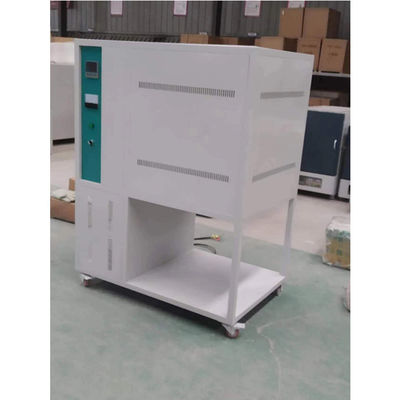

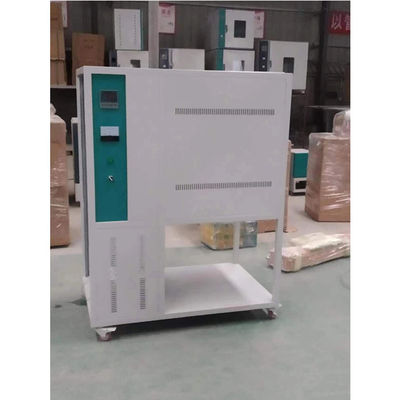

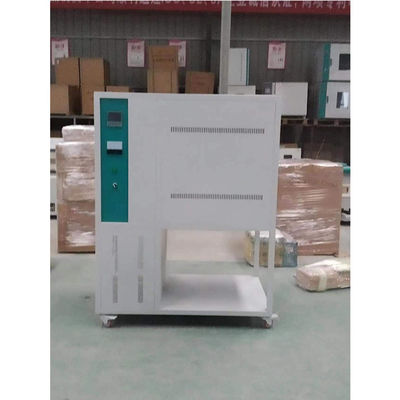

Electric Glass Melting Furnace Electric Glass Melting Furnace For Sale
Continuous Glass Melting Furnace
Product introduction
Glass Frit furnace is used for chemical analysis, physical determination and thermocouple identification laboratories,universities and scientific research institutes. This product is widely used in quartz, glass, organic matter melting treatment.
Feature
1.Appearance with high temperature and corrosion resistant paint treatment
2.Control with digital display instrument, ammeter, novel structure
3.The top of the furnace can be convenient for feeding and discharging
4.All the wires are connected, the goods can be used on arrival, simple operation
5.Strong observability, special product for laboratory
6.Adopt zirconium-containing crucible, can withstand temperature up to 1780 degrees
7.Top loading, bottom discharging, easy to operate
8. The furnace adopts full fiber structure, fast heating up
Parameter
| Capacity | 1.6L-18L |
| Temperature | 1700℃ |
| Crucible Material | High Purity Zirconium Quartz(99.99%) |
| Temperature control accuracy | ±1℃ |
| Voltage | 380V 50Hz |
| Power | 18KW |
| Heating element | Silicon molybdenum rod |
| Heating rate | 1℃/h to 40℃/min can be adjusted |
| Thermocouple Model | 1700 degree B graduation |
| Heating element installation | Heating on all sides |
| Temperature control method | Microcomputer intelligent adjustment technology, with PID adjustment, automatic control, self-tuning functions, multi-segment program programming, can compile various heating, heat preservation, cooling programs, high temperature control accuracy; integrated module thyristor control, phase-shift triggering. |
| Protective device | Independent over temperature protection, over voltage, over current, leakage, short circuit protection, etc |
| Furnace material | High purity alumina zirconium fibre board |
| Feeding method | Top feeding, bottom discharging |
| Cooling method | Double-layer furnace shell, air-cooled |
| Furnace shell temperature | ≤45℃ |

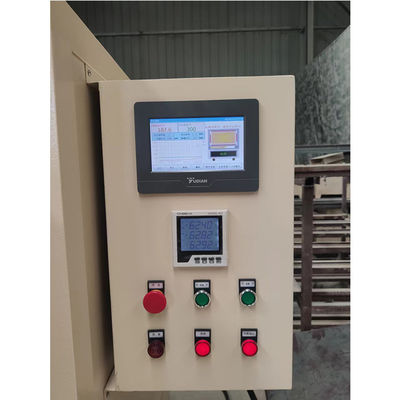

| Configuration | Paperless recorder, computer LCD touch screen, man-machine screen, communication online function, multiple devices are controlled by one computer, the operation is simple and convenient, and the data can be viewed in real time. |
Instructions
This furnace will be a funnel crucible placed in the furnace, will match the frit material directly into the crucible from the top, the crucible at the bottom of the circular hole flow material mouth, by a long plug rod and the crucible at the bottom of the flow material hole seal butt. When heating with electricity, the plug rod is under pressure under its own gravity, and sealed contact with the flow port to ensure no leakage during heating. When the heating is complete, pull the plug rod upwards to start feeding. Conversely, if the plug rod is released, the flow of material stops. If need different flow rate, can use different diameter short plug and long plug rod complete set to control. When the temperature rises to the specified temperature, the frit becomes molten and automatically flows into the container below by the flow hole below (there is a hole at the bottom of the crucible). When the crucible is replaced, the lifting platform can be lowered for easy replacement.
