| Product Name: | Heat Tempering Furnace | Temperature: | 550 Degree |
|---|---|---|---|
| Size: | 1600×1800×2100 Mm | Power: | 36 Kw |
| Furnace Weight: | 2500 Kg | Max Capacity: | 400kg |
| High Light: | 550 Degree Vacuum Tempering Furnace,PID Vacuum Tempering Furnace,550 Degree tempering ovens |
||

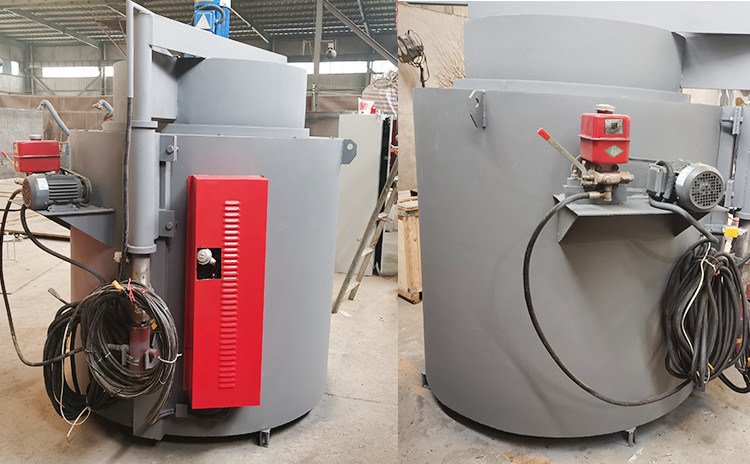

550 Degree Vacuum Tempering Furnace PID Temperature Control
Vacuum Tempering Furnace is mainly used for vacuum tempering of high-speed steel, special tool steel, cold working die steel and hot working die steel before raw material processing. It has good oxidation resistance. After reasonable heat treatment process, the ideal material structure can be obtained.
Electrical control system
|
Power supply
|
480V 60Hz |
|
Cabinet shell
|
dustproof and waterproof |
| Temperature control power components | West SSR360A/1100V high current high voltage solid state power module |
| Heating element | Beijing Shougang, high temperature 0Cr25AL5 resistance belt |
|
Electrical components
|
Chint Electric |
| Thermocouple | Shanghai No. 2 Automation Instrumentation Factory |
|
Dimensions of the electrical cabinet
|
500×400×1600 mm |
|
Weight
|
120Kg/unit |
Continuous Tempering Furnace Parameter
| Effective size | Ф700mm×1000mm |
| Rated power | 36KW |
| Maximum temperature | 550 ℃ |
| Heating zones | 1 zone |
| Temperature control | intelligent instrument PID |
| Power executive components | SSR360A/1100V solid state power module |
| Temperature control deviation | ±2°C |
| Temperature control accuracy | 0.3 grade |
| Soaking method | forced convection with fan on the furnace top |
| Furnace temperature uniformity | ≤±3℃ |
| Rated furnace capacity | ≤400Kg |
| Heating time of empty furnace | ≤1.2h |
| Empty furnace loss | ≤20KW |
| Furnace wall temperature rise | ≤ ambient +30 ℃ |
| Furnace cover lifting method | hydraulic |
| Furnace weight | 2800Kg |
| Dimensions | 1600mm×1800mm×2100mm |
