Cylinder Plasma Nitriding Machine With PID Control Heat Treatment

Cylinder Plasma Nitriding Machine With PID Control Heat Treatment
Cylinder Plasma Nitriding Machine With PID Control Heat Treatment
video play

Large Image :  Cylinder Plasma Nitriding Machine With PID Control Heat Treatment

Product Details:
Place of Origin: CHINA
Brand Name: IRIS
Certification: CE
Model Number: IRIS-N
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: plywood
Delivery Time: 45days
Payment Terms: L/C, T/T, D/A, D/P
Detailed Product Description
High Light:

Cylinder Plasma Nitriding Machine

,

PID Control Plasma Nitriding Machine

,

PID Control Plasma Nitriding Furnace

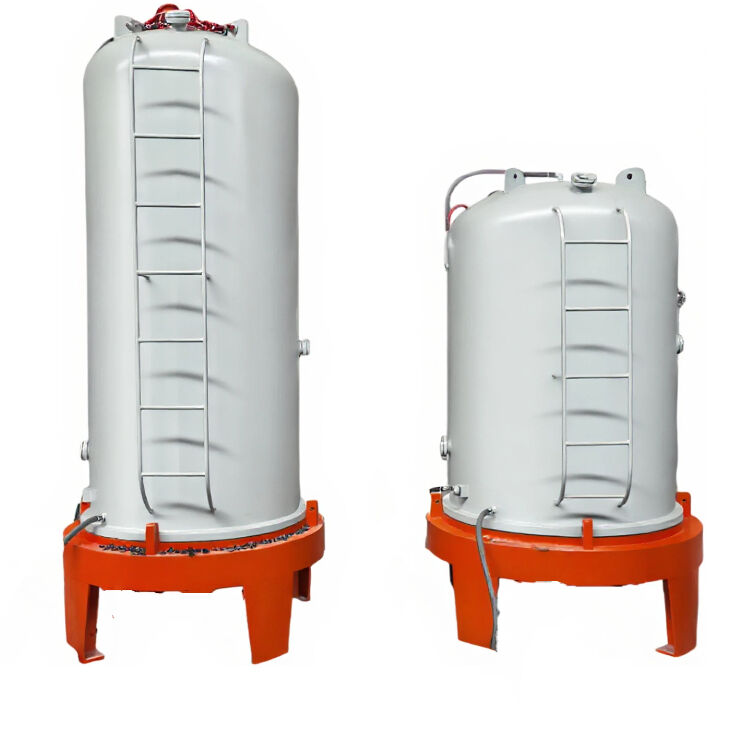

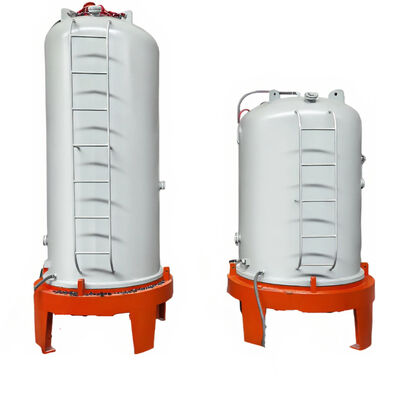

Cylinder Plasma Nitriding Machine With PID Control Heat Treatment



Cylinder Plasma Nitriding Machine is mainly used for tempering and stress relieving treatment of metal parts and alloy parts. The furnace is suitable for heat treatment at 650℃.



The composition of ion nitriding furnace bottom

The ion nitriding furnace consists of five parts: furnace body, power transmission device, vacuum acquisition system, power supply system, gas supply system and temperature measurement.
1. The furnace body is composed of a furnace cover, a cylinder body, a furnace chassis and a bottom frame. The furnace cover, the cylinder body and the furnace chassis are interlayered with cooling water. The furnace is equipped with stainless steel and alloy aluminum double-layer heat shields. There are double layers of tempered glass for observing the situation in the furnace during the ion nitriding process.
2. There are two sets of cathode power transmission devices on the furnace cover, a set of thermocouple hanging columns, and a hanging plate on it. The user should design a hoisting tool according to the parts to be processed, and hang the workpiece on the hanging plate through the hoisting tool. .
3. The vacuum obtaining system of the furnace body is generally composed of two rotary vane vacuum pumps and a pipeline system with a butterfly valve in series. The function of the butterfly valve is to adjust the suction volume by closing or rotating at different angles to maintain the air volume under different conditions. For the measurement of furnace pressure and vacuum degree, use the matching vacuum gauge to read the vacuum value.
4. The inlet of the gas supply pipe of the furnace body is set on the furnace shell cylinder, and there is one rotameter for hydrogen calibration and nitrogen calibration.



Cylinder Plasma Nitriding Machine With PID Control Heat Treatment 0

Cylinder Plasma Nitriding Machine With PID Control Heat Treatment 1

Cylinder Plasma Nitriding Machine With PID Control Heat Treatment 2

Basic parameters of ion nitriding furnace

project unit 25A 50A 75A 100A
Ultimate vacuum Pa 6.67
Pressure rise rate Pa/min 0.0133
vacuum pump pc 2x-4 2x-8 2x-8 2x-8
2x-4 2x-8 2x-8 2x-15
Furnace chamber size mm Φ760*800 Φ1060*950 Φ920*1200 Φ1100*1200
Maximum heating area cm² 1.25*104 2.5*104 3.5*104 5*104
loading capacity Kg 600 800 1000 1200
Maximum operating temperature 650 650 650 650



Comparison of workpieces after ion nitridation

Cylinder Plasma Nitriding Machine With PID Control Heat Treatment 3

The process of the nitriding process in the nitriding furnace is simply to introduce ammonia gas into the vacuum sealed tank of the nitriding furnace, and then heat it to 520 ℃. It is determined that it is generally 3 to 90 hours, so that a nitrogen-containing strengthening layer is formed on the surface of the workpiece, thereby improving the hardness, wear resistance and fatigue strength of the workpiece.
