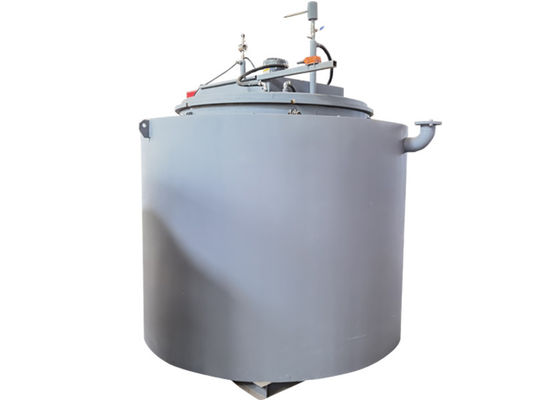

Pit Type Gas Nitriding Furnace For Carbon Steel Parts
Main Features
1) Long service life
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Offered with good price models and advanced models.
Basic parameters of gas nitriding furnace
| model | rated power(Kw) |
Rated temperature (℃) |
loading capacity (Kg) |
Empty furnace wear (Kw) |
Empty furnace heating time | Furnace temperature uniformity |
| RN2-20-6 | 20 | 650 | 160 | ≤7.5 | ≤2.5 | ±5 |
| RN2-30-6 | 30 | 650 | 200 | ≤10 | ≤2.5 | ±5 |
| RN2-45-6 | 45 | 650 | 300 | ≤15 | ≤2.5 | ±5 |
| RN2-60-6 | 60 | 650 | 630 | ≤17 | ≤2.5 | ±5 |
| RN2-75-6 | 75 | 650 | 750 | ≤20 | ≤2.5 | ±5 |
| RN2-90-6 | 90 | 650 | 1450 | ≤25 | ≤3.5 | ±5 |
| RN2-105-6 | 110 | 650 | 1800 | ≤30 | ≤3.5 | ±5 |
| RN2-140-6 | 140 | 650 | 2100 | ≤40 | ≤3.5 | ±5 |
working principle
The pit type nitriding furnace is a periodic operation type electric furnace. It is an energy-saving resistance furnace improved on the basis of a series of electric furnaces according to the actual use of the user. The maximum working temperature is 650 ℃. The workpiece is placed in the material basket, and the control atmosphere adopts the dripping type, which is dripped into the furnace tank through the flow meter and the drip tube, and the fan is installed on the furnace cover, which can perform forced circulation of the temperature and atmosphere in the furnace tank.
