Product Details:
Payment & Shipping Terms:
|
| Product Name: | Annealing And Quenching Furnace | Power: | 65KW |
|---|---|---|---|
| Capacity: | 400kg | Effective Size: | Ф700mm*1000mm |
| Max Temperature: | 750C | Temperature Deviation: | ±2℃ |
| Customization: | Support | OEM: | Acceptable |
| Warranty: | 1 Year | Temperature Control Method: | Intelligent Instrument PID Control |
| High Light: | Quenching Annealing Furnace,Aluminum Alloy Shell Annealing Furnace,Quenching Furnace 100kg/H |
||

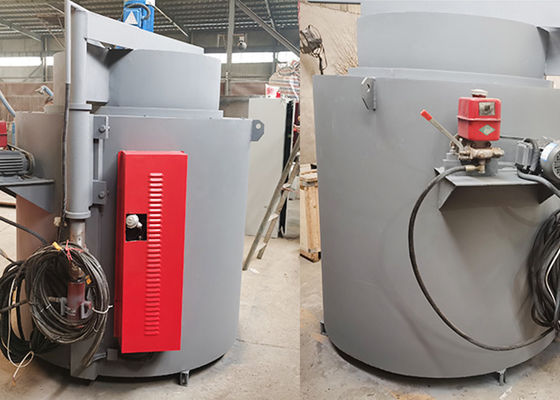

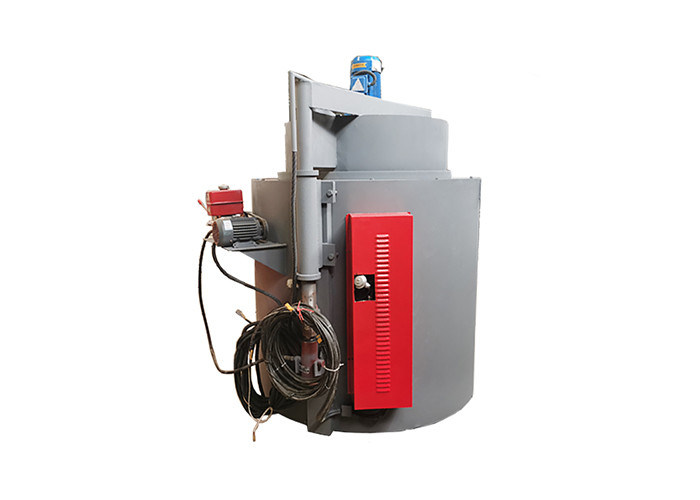

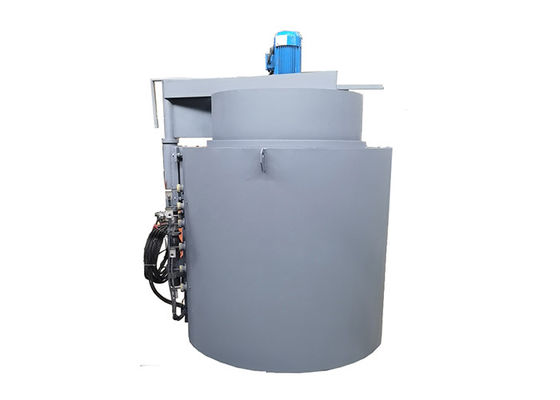

Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Applicantion
Aluminum alloy quenching furnace is suitable for quenching, aging and other heat treatment of medium and small aluminum alloy parts. Due to the particularity of the workpiece and the process, the electric furnace is required to be in temperature control accuracy, temperature control deviation,
It has high technical performance in terms of furnace gas uniformity and so on.
1. Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Structure
2.Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Advantage
3. Pit Aluminum Alloy Shell Annealing Furnace And Quenching Furnace Technical Parameter
| Model | IRIS-JQ65 |
| Electric furnace power | 65kw |
| Input voltage | 480v 60 HZ |
| Effective size | Ф700mm*1000mm |
| Maximum temperature | 750℃ |
| Number of temperature control zones | 1 zone |
| Temperature control accuracy | ≤±2℃ |
| Furnace Size | 1600mm×1800mm×2100 mm |
| Furnace Weight | 2800kg |
| Productivity | 100kg/h |
| Heating method | High temperature resistance tape |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over temperature alarm |
