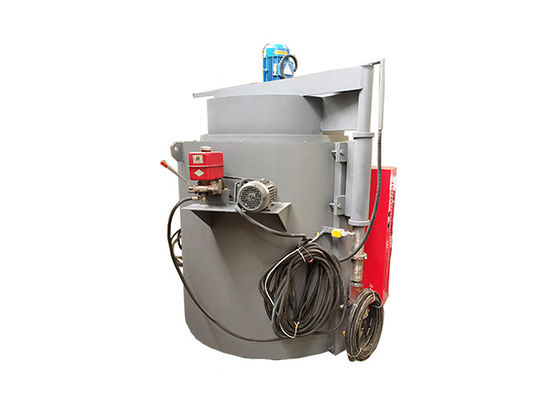

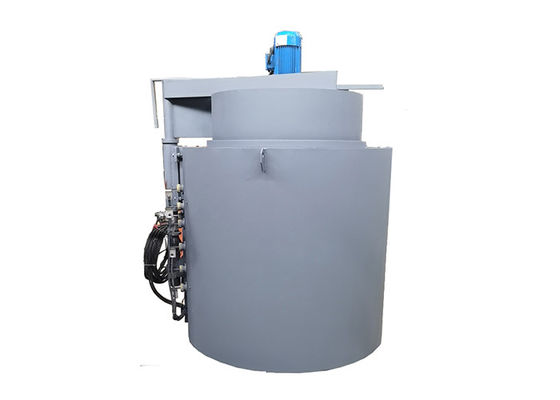

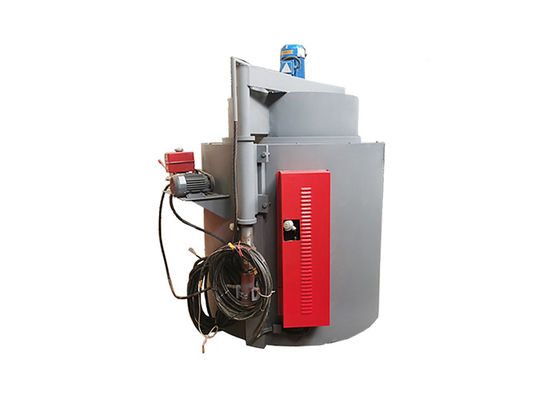

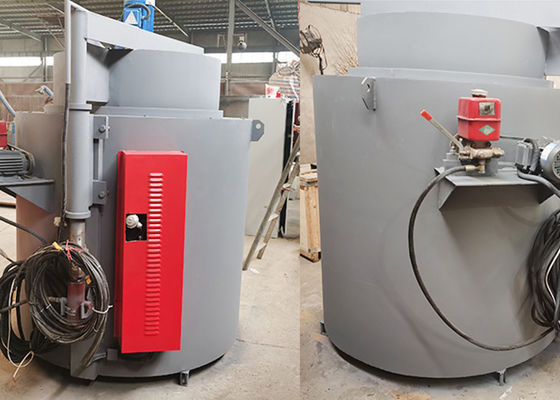

750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace

750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace
750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace 750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace 750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace 750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace 750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace

Large Image :  750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace

Product Details:
Place of Origin: Henan,China
Brand Name: IRIS
Certification: CE
Model Number: IR-QF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 15000-25000 per set
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500SETS per month
Detailed Product Description
Product Name: Heat Treatment Quenching Furnace Equipment Temperature: 750 Degree
Size: 1600×1800×2100 Mm Power: 65kw
Furnace Weight: 2500 Kg Max Capacity: 400kg
High Light:

400kg Quenching Furnace

,

750 Degree Quenching Furnace

,

Aluminum Alloy Heat Treatment Furnace

Heat Treatment Quenching Furnace Equipment Aluminum Quenching Furnace Alloy

Heat Treatment Quenching Furnace Dealers



Theheat treatment quenching furnace equipment is made of high-aluminum fiber folded blocks.

The advantages of this material are as follows:
(1) It has excellent high temperature resistance and can withstand temperature up to 1250℃.
(2) The thermal conductivity is low and the heat transfer speed is slow, which greatly reduces the

heat loss of the furnace.
(3) The density is small, the density of the refractory fiber is small, the weight is light, and the bulk

density is only 1/6 of the bulk density of the light brick, which greatly reduces the load of the steel

structure.
(4) Less heat storage. The furnace wall is made of refractory fiber, and its heat storage is only about

1/4 of the brick structure furnace, so the heating time of the furnace body is short.
(5)Good thermal shock resistance. Because the refractory fiber is soft and elastic, it has excellent

resistance to rapid cooling and rapid heating, and has strong thermal shock resistance.
(6) The insulation performance is good, and the insulation performance at high temperature is 3 times

that of refractory bricks.
(7)Good chemical stability. It is not attacked by general acid and alkali in heat treatment equipment.
(8) Since the fiber absorbs less heat and the furnace body cools quickly, the workpiece after solution

treatment can enter the aging process without waiting too long.



Parameter

Effective size Ф700mm×1000mm
 Rated power 65KW
Maximum temperature  750 ℃
Heating zones 1 zone
 Temperature control intelligent instrument PID
 Power executive components  SSR360A/1100V solid state power module
 Temperature control deviation  ±2°C
Temperature control accuracy 0.3 grade
Soaking method forced convection with fan on the furnace top
Furnace temperature uniformity ≤±3℃
 Rated furnace capacity ≤400Kg
Heating time of empty furnace ≤1.2h
Empty furnace loss ≤20KW
Furnace wall temperature rise  ≤ ambient +30 ℃
Furnace cover lifting method hydraulic
 Furnace  weight  2800Kg
 Dimensions   1600mm×1800mm×2100mm

750 Degree 400kg Quenching Furnace Aluminum Alloy Heat Treatment Furnace 0
