Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Resistance Quenching Furnace | Power: | 65KW |
|---|---|---|---|
| Capacity: | 400kg | Effective Size: | Ф700mm*1000mm |
| Max Temperature: | 750C | Temperature Deviation: | ±2℃ |
| Customization: | Support | OEM: | Acceptable |
| Warranty: | 1 Year | Temperature Control Method: | Intelligent Instrument PID Control |
| High Light: | ISO Resistance Quenching furnace,Quenching furnace For Steel Workpieces,Well Type Nitriding Furnace |
||
Well-Type Nitriding Furnace For Steel Workpieces/Resistance Furnace/Quenching Furnace Description
Well-Type Nitriding Furnace For Steel Workpieces/Resistance Furnace/Quenching Furnace is cyclic working furnace.It is mainly applicable to the nitriding steel workpieces. The temperatuer is monitored and recorded automatically.

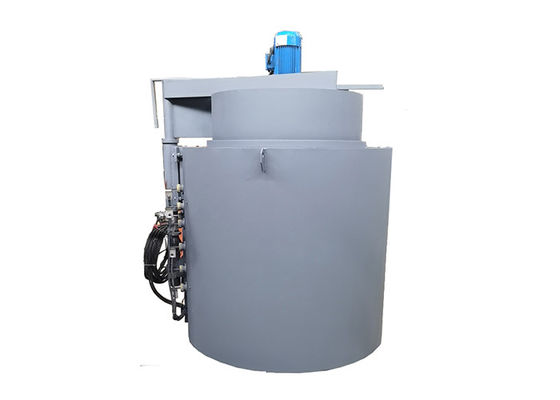

The furnace is comprised of furnace body, heating components and temperature control system.
The furnace shell is made of welded steel plates and sectional steel.
Its lining is comprised of heat insulation layer of superlight high aluminum foam brick and of heat preservation layer of silicate aluminum refractory fiber, diatomite soil or vermiculite powder.
The heating components are placed on the supporting brick.

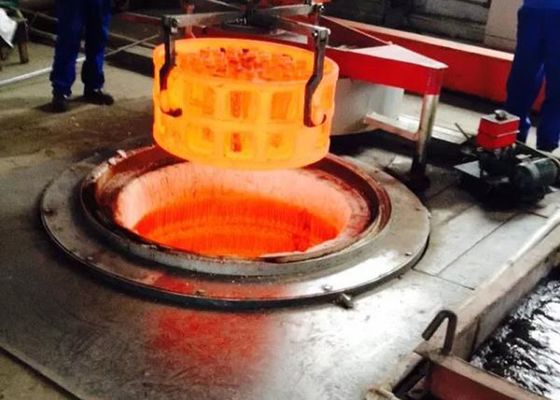

The furnace hearth is equipped with one heat resistanct tank and workpiece accomodating rack.
The furnace shell is also mounted with one ventilation fan to circulate the air and unify the furnace interior temperature. There is one anti-leakage sealing device on the axis, which is cooled with cooling water.
The furnace cover is lifted with hydraulic lifting mechanism and the driving force is provided by 10/25 hydraulic device.
1. Well-Type Nitriding Furnace For Steel Workpieces/Resistance Furnace/Quenching Furnace Structure
Pit type tempering furnace is energy-saving cycle operation furance, which is used for tempering general metal parts in the air and quenching, annealing, aging heat treatment for aluminum alloy castings ,piston, aluminum and other light alloy parts.
2.Well-Type Nitriding Furnace For Steel Workpieces/Resistance Furnace/Quenching Furnace Advantage
1. The refractory fiber is ceramic fiber block, with good heat preservation effect, fast temperature rising, it can save energy by 20% - 30% compared with brick lining.
2. Light weight
3. Adopt circulation fan within the furnace to stir the air in the furnace, to strengthen the internal gas flow, effectively increase the furnace temperature uniformity.
4. The heating element is heating Using iron chromium electrothermal alloy, its temperature can reach 1400 ℃,with small proportion, and high resistivity .
5. Good corrosion resistance, especially effective for sulfur-containing atmosphere and those that is polluted by sulfur-containing substance.
6. Electrical control part is purchased from domestic famous brands, if they cannot meet your requirements, we can also supply you international famous brands, such as schneider, omron, and Siemens, etc.
3. Well-Type Nitriding Furnace For Steel Workpieces/Resistance Furnace/Quenching Furnace Technical Parameter
| Model | IRIS-JQ65 |
| Electric furnace power | 65kw |
| Input voltage | 480v 60 HZ |
| Effective size | Ф700mm*1000mm |
| Maximum temperature | 750℃ |
| Number of temperature control zones | 1 zone |
| Temperature control accuracy | ≤±2℃ |
| Furnace Size | 1600mm×1800mm×2100 mm |
| Furnace Weight | 2800kg |
| Productivity | 100kg/h |
| Heating method | High temperature resistance tape |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over temperature alarm |
| Heating time | less than 1.2 hours |
