| Product Name: | Aluminum Quenching Furnace Electric | Temperature: | 750 Degree |
|---|---|---|---|
| Size: | 1600×1800×2100 Mm | Power: | 65kw |
| Furnace Weight: | 2500 Kg | Max Capacity: | 400kg |
| High Light: | OEM Electric Heat Treatment Furnace,IRIS Electric Heat Treatment Furnace,750 degree Aluminum Quenching Furnace |
||

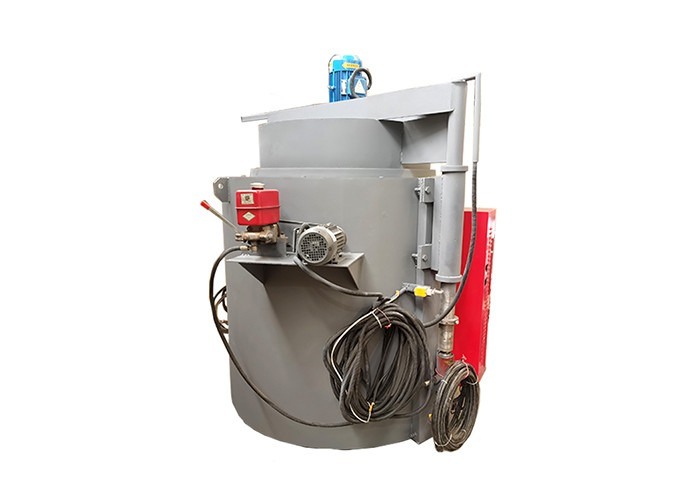

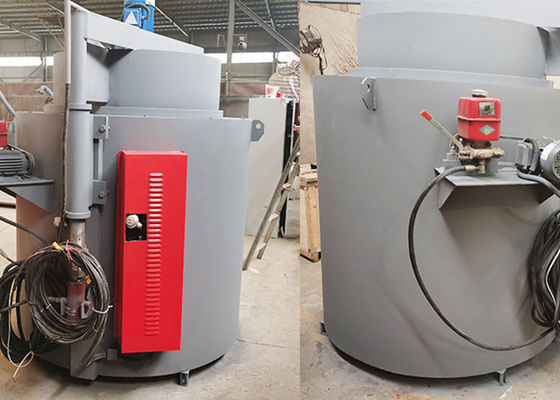

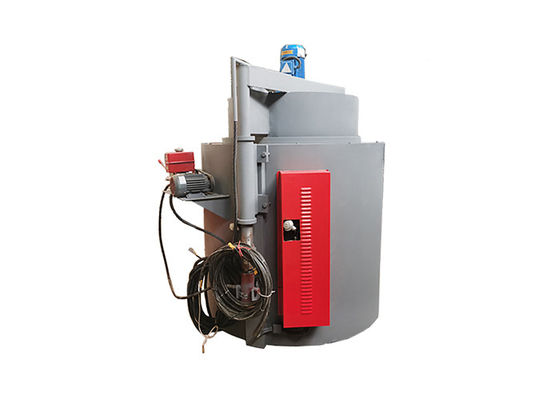

Aluminum Quenching Furnace Electric Heat Treatment Quenching Furnace Cost
Aluminum Quenching Furnace Aluminum
The complete set of aluminum quenching fuenace electric consists of furnace body, hot
air circulation system, furnace cover lifting mechanism, control cabinet and other systems.
The outer shell of the aluminum quenching furnace electric body is formed by welding plates,
the lining refractory layer is made of high-quality refractory bricks, and the insulating layer is
made of fiber structure. In order to ensure that the aluminum quenching furnace electric lining
has both good thermal insulation performance and certain structural strength, the aluminum
quenching electric furnace chamber is made of high-aluminum fiber folded blocks.
Parameter
| Effective size | Ф700mm×1000mm |
| Rated power | 65KW |
| Maximum temperature | 750 ℃ |
| Heating zones | 1 zone |
| Temperature control | intelligent instrument PID |
| Power executive components | SSR360A/1100V solid state power module |
| Temperature control deviation | ±2°C |
| Temperature control accuracy | 0.3 grade |
| Soaking method | forced convection with fan on the furnace top |
| Furnace temperature uniformity | ≤±3℃ |
| Rated furnace capacity | ≤400Kg |
| Heating time of empty furnace | ≤1.2h |
| Empty furnace loss | ≤20KW |
| Furnace wall temperature rise | ≤ ambient +30 ℃ |
| Furnace cover lifting method | hydraulic |
| Furnace weight | 2800Kg |
| Dimensions | 1600mm×1800mm×2100mm |
