| Product Name: | 45kw Pit Type Tempering Quenching Furnace For Steel Aluminum Metal Tempering | Type: | Resistance Furnace |
|---|---|---|---|
| Rated Voltage: | 3*380V / 50-60Hz | Rated Power: | 45KW |
| Number Of Heating Zones: | 1 Zone | Temperature Control Method: | Intelligent Instrument PID Control |
| Power Actuator: | SSR300A/1700V SCR Module | Rated Furnace Capacity: | 400Kg |
| Empty Furnace Heating Time: | ≤1.2h | Furnace Cover Lifting Method: | Hydraulic |
| Highlight: | 45kw Aluminum Quenching Furnace,45kw Steel Quenching Furnace,1 zone Pit Type Tempering Furnace |
||
45kw Pit Type Tempering Quenching Furnace For Steel Aluminum Metal Tempering
Aluminum alloy quenching furnace is suitable for quenching, aging and other heat treatment of medium and small aluminum alloy parts. Due to the particularity of the workpiece and process, the electric furnace is required to have high technical performance in terms of temperature control accuracy, temperature control deviation, and furnace gas uniformity.
1. Structure of pit type tempering furnace:

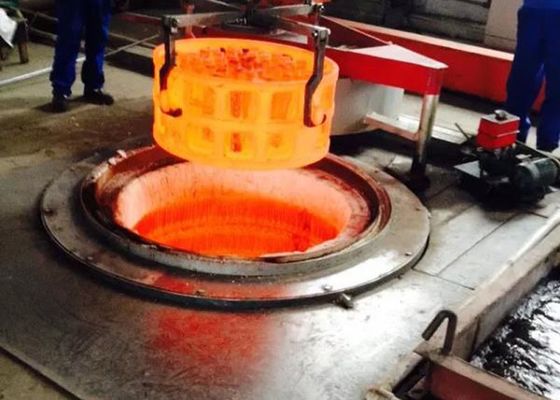

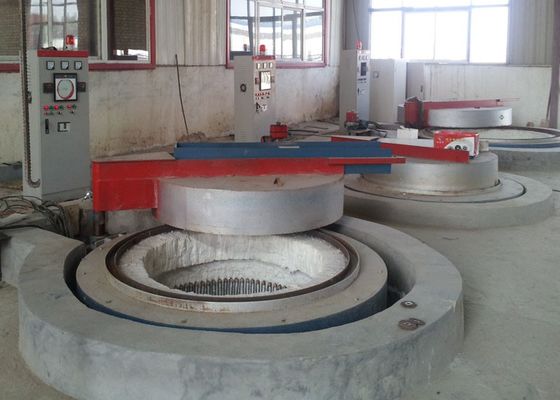

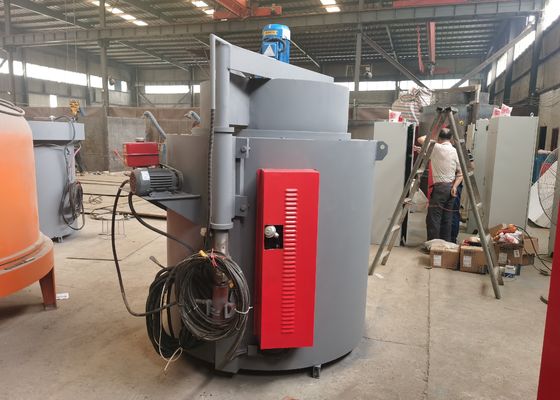

Pit type tempering furnace is mainly composed of furnace shell, furnace lining, furnace cover and lifting device, heating device, loading frame and electrical control cabinet.,etc.
2. Application of pit type tempering furnace:
This pit type tempering furnace is mainly used for tempering of carbon steel materials mechanical parts after quenching.
The paramter of the 45kw Pit Type Tempering Quenching Furnace For Steel Aluminum Metal Tempering
| Effective size | Ф700mm×1000mm |
| Rated power | 65KW/45KW |
| Rated voltage | 380V |
| Maximum temperature | 650℃ (until the workpiece is damaged, the instrument sets the maximum input upper limit) |
| Number of heating zones | 1 zone |

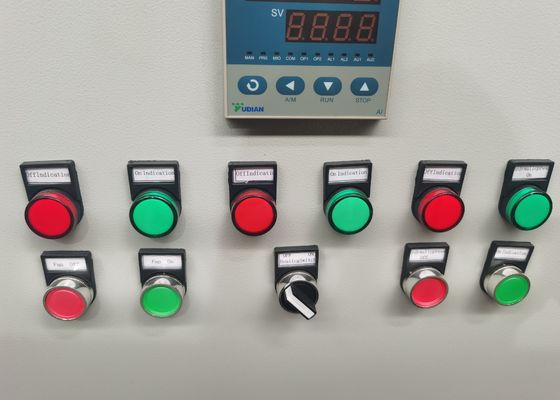

| Temperature control method | intelligent instrument PID control |
| Power actuator | SSR300A/1700V SCR module |
| Temperature control deviation | ±2℃ (during heat preservation) |
| Temperature control accuracy | 0.3 level |
| Soaking method | soaking by the top fan |
| Furnace temperature uniformity | ≤±3℃ (five-point temperature measurement in the furnace during the test) |
| Rated furnace capacity | 400Kg |
| Empty furnace heating time | ≤1.2h |
| Empty furnace loss | ≤12KW |
| Furnace wall temperature rise | ≤environment+30℃ |
| Furnace cover lifting method | hydraulic |
| Furnace weight | 2800Kg |
