1-20KHZ Upward Continuous Copper Rod Casting Machine Intelligent Control

Hot Sale Copper Rod Continuous Casting Machine Furnace 8mm

Casting copper rod production line is now widely used copper rod production line, which has a stable production,

energy efficient features.Its main electric furnace, crystallizer, continuous casting traction machine, automatic cutting

machine, and the subsequent drawing machinery, straightening polishing machinery and other components.

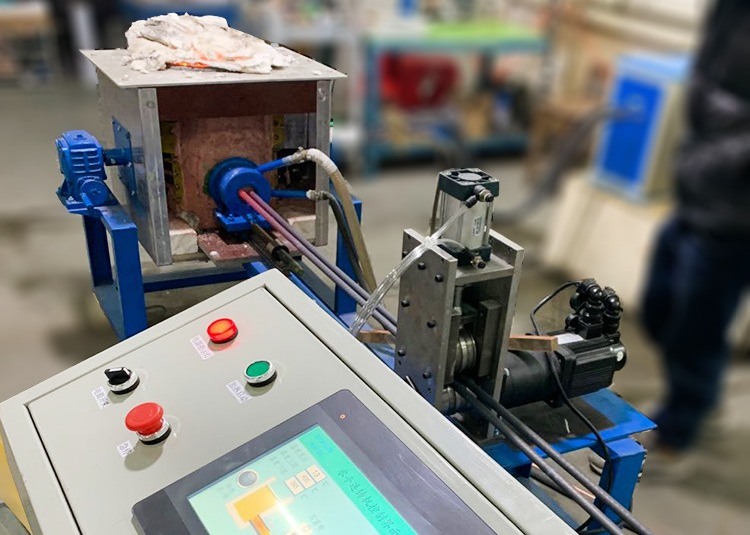

Main Composed Parts of the Copper Rod Making Production Line

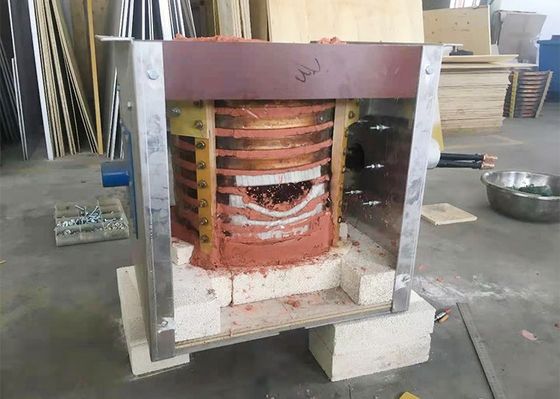

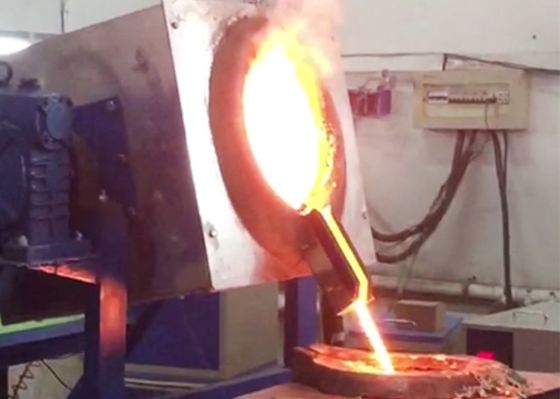

1. Melting and holding furnace: intermediate frequency power cabinet and furnace body

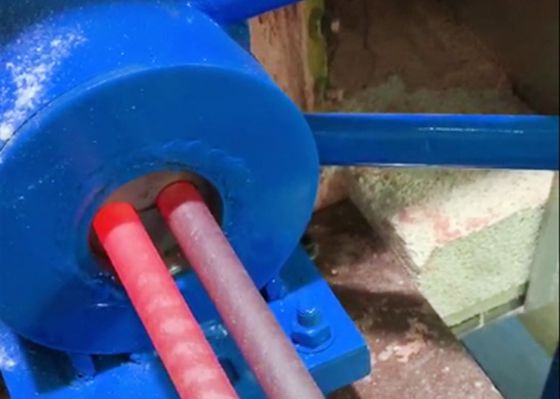

2. Crystallizer

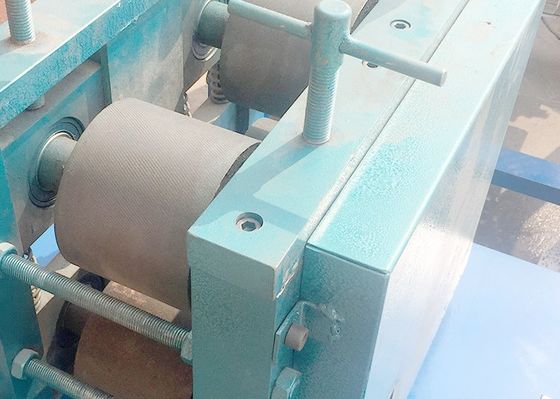

3. Tractor
4. Temperature controller
5. Automatic winding machine
Accessories: main extension connection, water-cooled cable, wired remote control switch

Technical parameter of the copper rod making machine:

Technical requirements for copper rod making machine

1. Purpose: Horizontal continuous casting production and processing of 2 Φ8 ± 0.3 mm and 8*40 rectangular copper alloy bars.
2. Production process: The copper alloy raw materials are melted at a high temperature and then cooled by a mold, and two Φ8 ± 0.5 mm copper wires and 8*40 square copper alloys are continuously drawn out.
3. Furnace body: The holding furnace is equipped with a set of power supply, and the effective value of the installed furnace is 50 kg (calculated by the copper material).
4. Melting furnace and holding furnace heating method: all solid-state IGBT transistor modular intermediate frequency induction heating, maximum temperature: 1500℃, temperature control accuracy: ±5℃.
5. Crucible requirements: silicon carbide isostatically pressed graphite material, reusable, continuous use at 1500°C for 300 hours and above.
6. Temperature measurement method: platinum rhodium thermocouple temperature measurement, temperature measurement location: the outer wall of the crucible.
7. Temperature control method: Intelligent temperature control, which can automatically control the temperature according to the set temperature, and realize the real-time display of the melt temperature.
8. Traction mode: servo motor, traction 1 piece, casting speed 0-0.75 m/min.

Our service:

1.Before sale: We introduce you our machine by email or telephone and answer every questions about our machines.

2.If you want to have face-to face talk and examine the machine in our factory,we will schedule it and take care of your boarding in China,sush picking you up at airport and booking hotels for you.

3.Our engineers can go to your factory for machine installation and commissioning.The gurantee period of machine is 12 months,so we gurantee machine quality and if any problem rises because of our machine quality,we are resposible for all fees for reparing.
