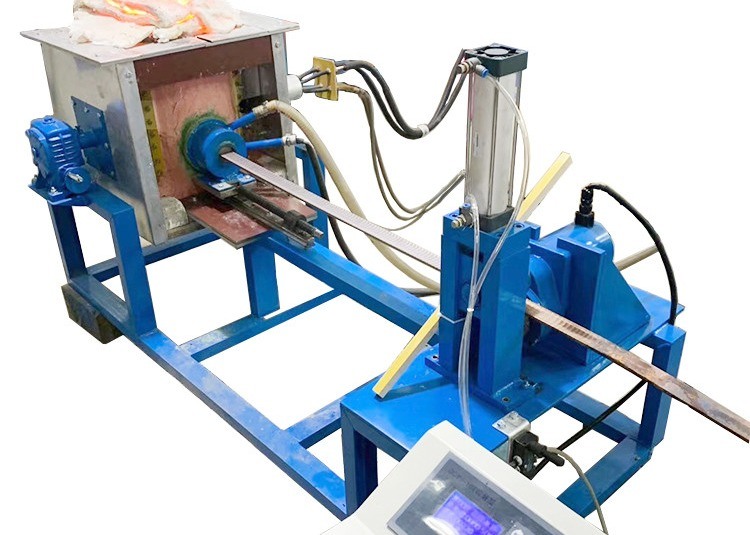

70kw 8mm Copper Rod Casting Machine Horizontal Continuous Casting Machine

8mm Copper Rod Making Machine 70kw Copper Wire Upcasting Machine

Product Feature:

1. Power cabinet is adopted by Integrated digital circuit and well-know brands parts, the device have high reliability
2. Rapid heating, temperature easy to control, high production efficiency.
3. The water inlet and outlet of induction melting furnace body adopt water-cooled copper plate to improve the service life of furnace lining.
4. The top of induction melting furnace body is designed with sliding cover design, which makes it more convenient for maintenance personnel to maintain the furnace body.
5. Zero voltage starts up softly, high initial power, don´t impact on the electric network.

Main equipment configuration of the copper rod making machine :

1. Melting and holding furnace: intermediate frequency power cabinet and furnace body

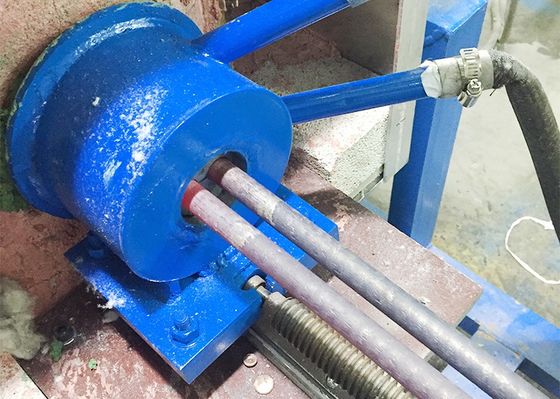

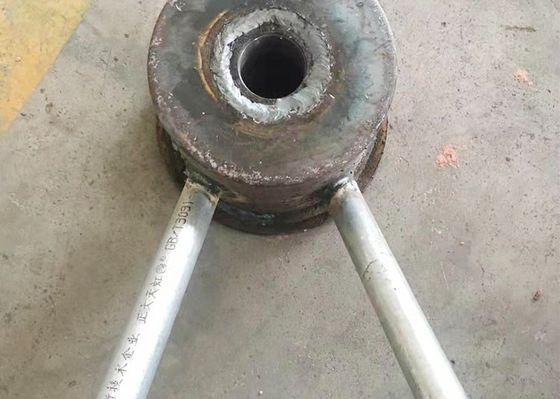

2. Crystallizer
3. Tractor
4. Temperature controller
5. Automatic winding machine
Accessories: main extension connection, water-cooled cable, wired remote control switch

Technical parameter of the copper rod making machine:

Technical requirements for copper rod making machine

1. Purpose: Horizontal continuous casting production and processing of 2 Φ8 ± 0.3 mm and 8*40 rectangular copper alloy bars.
2. Production process: The copper alloy raw materials are melted at a high temperature and then cooled by a mold, and two Φ8 ± 0.5 mm copper wires and 8*40 square copper alloys are continuously drawn out.
3. Furnace body: The holding furnace is equipped with a set of power supply, and the effective value of the installed furnace is 50 kg (calculated by the copper material).
4. Melting furnace and holding furnace heating method: all solid-state IGBT transistor modular intermediate frequency induction heating, maximum temperature: 1500℃, temperature control accuracy: ±5℃.

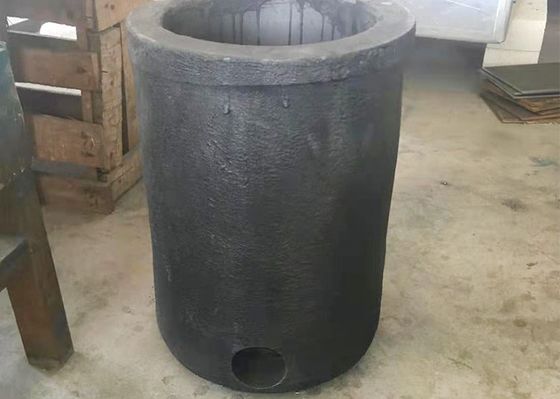

5. Crucible requirements: silicon carbide isostatically pressed graphite material, reusable, continuous use at 1500°C for 300 hours and above.
6. Temperature measurement method: platinum rhodium thermocouple temperature measurement, temperature measurement location: the outer wall of the crucible.
7. Temperature control method: Intelligent temperature control, which can automatically control the temperature according to the set temperature, and realize the real-time display of the melt temperature.
8. Traction mode: servo motor, traction 1 piece, casting speed 0-0.75 m/min.
