Economic Model 45kw Copper Rod Making Machine Copper Wire Manufacturing Machine

Economic Model 45kw Copper Rod Making Machine Copper Wire Manufacturing Machine
Economic Model 45kw Copper Rod Making Machine Copper Wire Manufacturing Machine Economic Model 45kw Copper Rod Making Machine Copper Wire Manufacturing Machine Economic Model 45kw Copper Rod Making Machine Copper Wire Manufacturing Machine Economic Model 45kw Copper Rod Making Machine Copper Wire Manufacturing Machine

Large Image :  Economic Model 45kw Copper Rod Making Machine Copper Wire Manufacturing Machine

Product Details:
Place of Origin: China
Brand Name: IRIS
Certification: ISO9001
Model Number: IRIS-45
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $12996-$6786 Set
Packaging Details: Export Woodern Box
Delivery Time: Within 15 working days
Payment Terms: T/T
Supply Ability: 20 set/month
Detailed Product Description
Product Name:: Economic Model Copper Rod Making Plant 45kw Copper Rod Making Machine For 8mm Model :: IRIS-45
Maximum Input Power: 45KW Oscillation Frequency:: 1-20KHZ
Input Current:: 95A Output Voltage:: 70-520V
Input Voltage:: 3 Phase 380V 50/60HZ Cooling Water Requirement:: ≥ 0.2Mpa, ≥5L/min
Load Duration Rate:: 100%
High Light:

45kw Copper Rod Making Machine

,

8mm Copper Rod Making Machine

,

20KHZ copper wire manufacturing machine

Economic Model Copper Rod Making Plant 45kw Copper Rod Making Machine For 8mm



Copper wire making machine is used for producing bright and long oxygen-free copper rod, copper tube, flat copper bar.This machine can directly produce different specifications of copper rod,copper tube and other special shaped copper material continuously from electrolytic copper.

Economic Model Copper Rod Making Plant 45kw Copper Rod Making Machine For 8mm

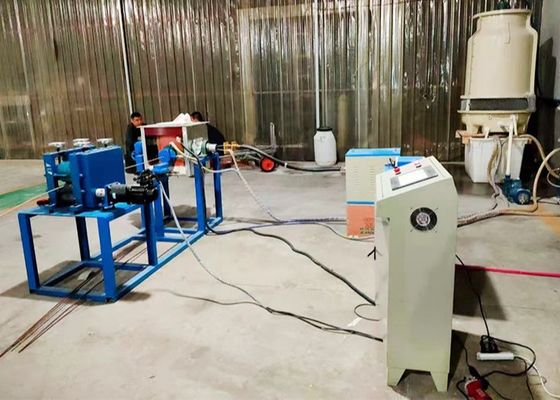

Main equipment configuration of the copper rod making machine :

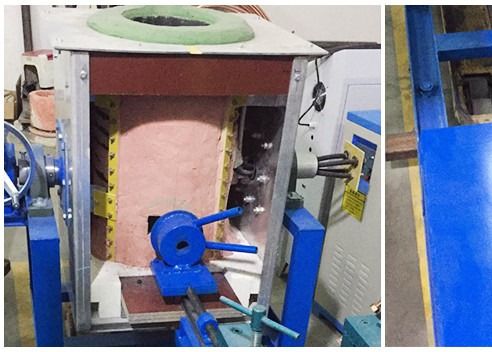

1. Melting and holding furnace: intermediate frequency power cabinet and furnace body
2. Crystallizer
3. Tractor
4. Temperature controller
5. Automatic winding machine
Accessories: main extension connection, water-cooled cable, wired remote control switch

Economic Model Copper Rod Making Plant 45kw Copper Rod Making Machine For 8mm



Technical parameter of the copper rod making machine:



Model IRIS-70 IRIS-90 IRIS-110 IRIS-160
Maximum input power 70kw 90kw 110kw 160kw
Oscillation frequency 1-20KHZ 1-20KHZ 1-20KHZ 1-10KHZ
Input Current 105A 135A 170A 240A
Output voltage 70-520V 70-520V 50-520V 70-520V
Input voltage 3-phase 380V, 50/60HZ
Cooling water requirements ≥ 0.2Mpa, ≥5L/min
Load duration 1

Economic Model Copper Rod Making Plant 45kw Copper Rod Making Machine For 8mm



Economic Model Copper Rod Making Plant 45kw Copper Rod Making Machine For 8mm

Economic Model Copper Rod Making Plant 45kw Copper Rod Making Machine For 8mm

Technical requirements for copper rod making machine


1. Purpose: Horizontal continuous casting production and processing of 2 Φ8 ± 0.3 mm and 8*40 rectangular copper alloy bars.

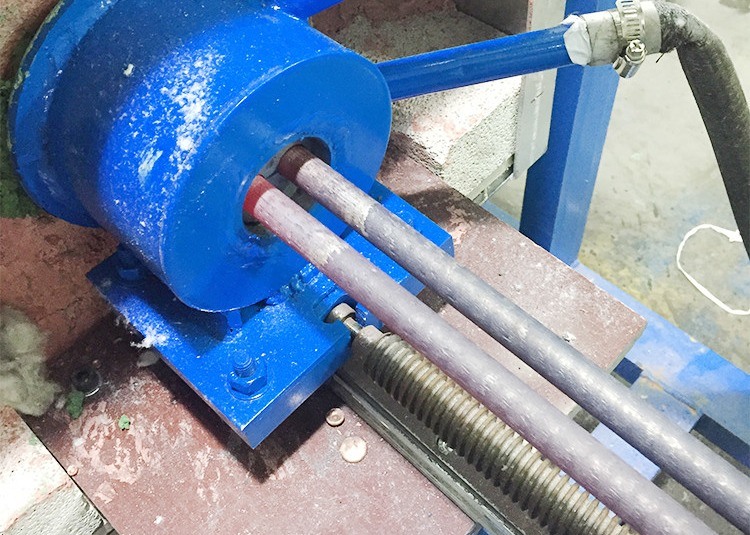

2. Production process: The copper alloy raw materials are melted at a high temperature and then cooled by a mold, and two Φ8 ± 0.5 mm copper wires and 8*40 square copper alloys are continuously drawn out.
3. Furnace body: The holding furnace is equipped with a set of power supply, and the effective value of the installed furnace is 50 kg (calculated by the copper material).

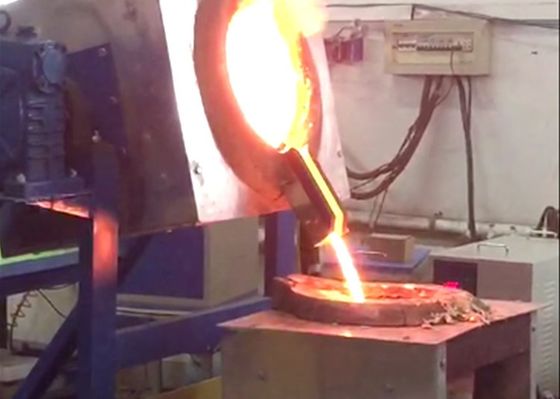

4. Melting furnace and holding furnace heating method: all solid-state IGBT transistor modular intermediate frequency induction heating, maximum temperature: 1500℃, temperature control accuracy: ±5℃.
5. Crucible requirements: silicon carbide isostatically pressed graphite material, reusable, continuous use at 1500°C for 300 hours and above.
6. Temperature measurement method: platinum rhodium thermocouple temperature measurement, temperature measurement location: the outer wall of the crucible.
7. Temperature control method: Intelligent temperature control, which can automatically control the temperature according to the set temperature, and realize the real-time display of the melt temperature.
8. Traction mode: servo motor, traction 1 piece, casting speed 0-0.75 m/min.
